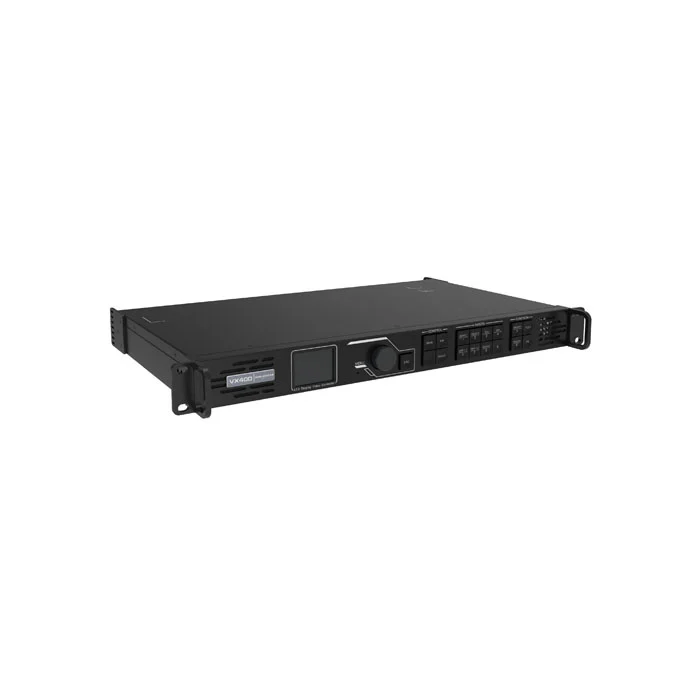

Novastar | 101625 | VX400 | All-In-One Video Processor

The VX400 is the successor to the VX4S-N and provides an all-in-one solution for driving small to medium-sized LED screen installations. It can drive up to 2,600,000 pixels in total, with a width of up to 10,240 pixels or a height of up to 8,192 pixels, making it ideal for ultra-wide and ultra-high LED screen applications.

The VX400 offers a wide variety of video inputs and it allows seamless switching between multiple input sources. It supports two layers for PiP applications (1x Main, 1x PiP), has powerful front-end processing with colour correction, and eliminates the need for an external scaler. The Image Mosaic function allows you to combine up to 4 units to easily drive large LED screens.

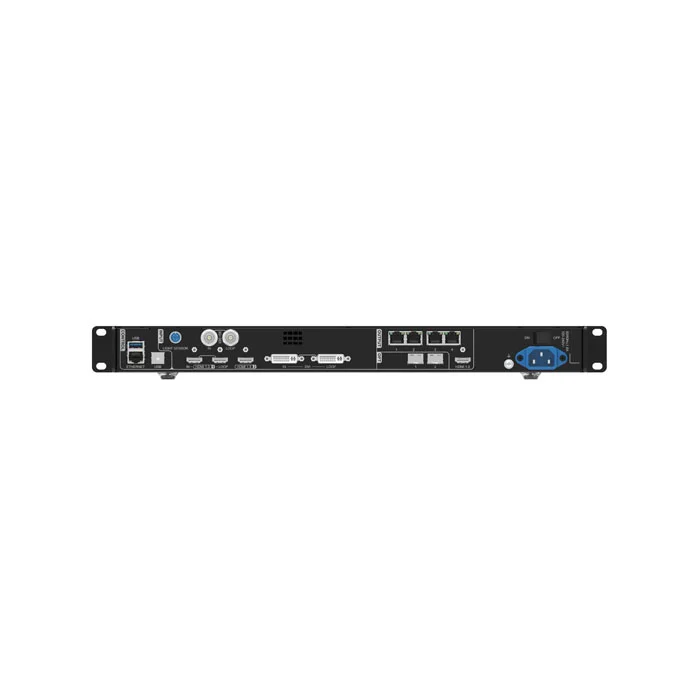

In addition to the built-in sender card with 4 outputs, two fibre-optic output ports are available to cover distances beyond the 100 metre Ethernet cable limit. An additional optical converter unit is required to drive your LED screens. This can either be one of the separately available Novastar CVT10-M or CVT10-S fibre converters, or a second VX400 in fibre converter mode. A light sensor input is available for direct connection of a light sensor, allowing for automatic brightness control.

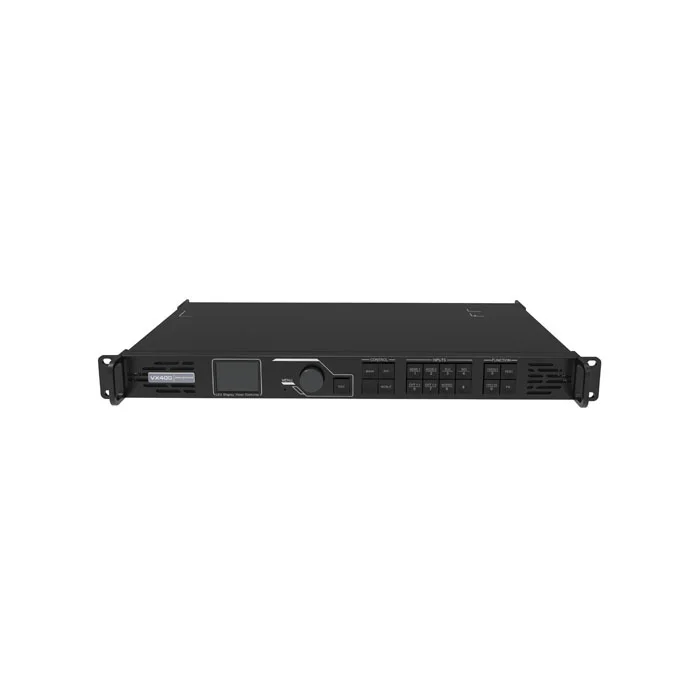

Screen configuration can be done via USB and Ethernet connection. The stylish 1U box fits neatly into a 19" rack or case, making it ideal for rental companies and fixed installations.

Technical specifications
HDMI 1.3: 2
Single Link DVI: 1
3G-SDI: 1
Light Sensor Port: 1
Main Outputs: 4
HDMI 1.3 (Loop): 1
HDMI (PVW / MVR): 1
Single Link DVI (Loop): 1
3G-SDI (Loop): 1
SFP Slot Type: 10G
SFP Slot Quantity: 2
Scaling Function: Yes
Image Mosaic: Yes
Crop Settings: Yes
PIP: Yes
Layers: 2
Maximum Loading Capacity: 2.6 Mpx
Maximum Input Resolution: 1920 x 1200 / Width and Height can be defined by users
Control Options: Ethernet / USB
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 28 W
Power Connector In: IEC
Data Connector In: RJ45 / USB
Data Connector Out: RJ45 / USB
