Novastar | 101637 | KU20 | LED display controller

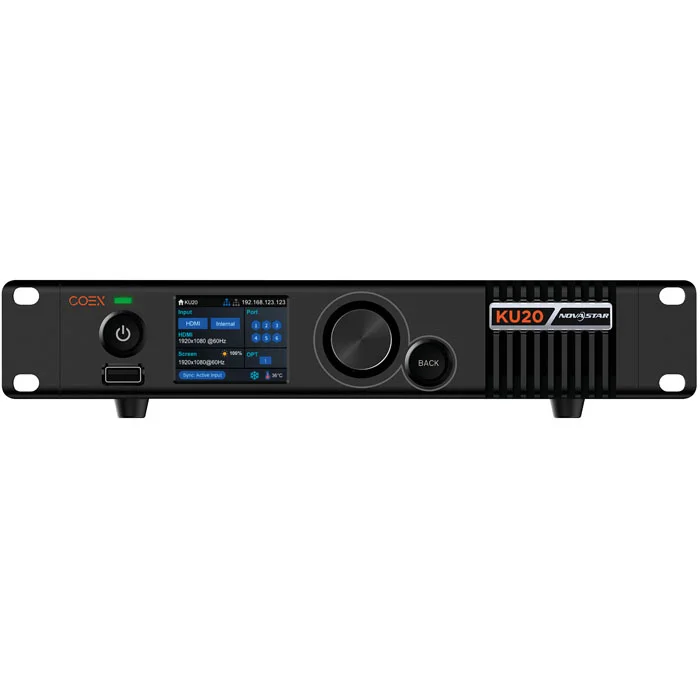

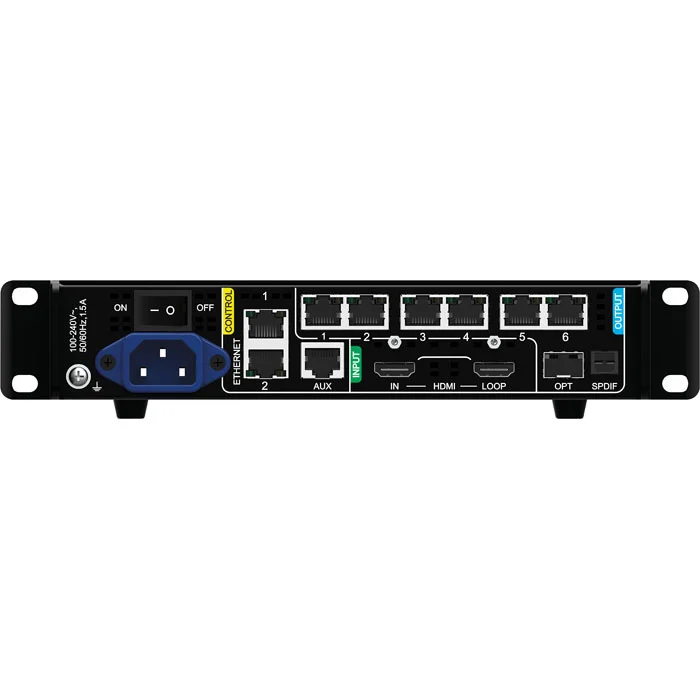

Novastar’s KU20 is an LED display controller with an HDMI 1.3 input and a loop. It has six Ethernet outputs as well as optical and S/PDIF outputs. There are also two network ports and one auxiliary port on board. A control knob and a back button, together with a 2-inch LCD screen, make it easy to control the device. The KU20 can also be controlled by the comprehensive, user-friendly VMP software, which ensures easy operation and control. Cascading control via Ethernet is also possible and both SNMP and Art-Net protocols are supported. Advanced features include image scaling, pixel level brightness and chroma calibration, low latency support and display system monitoring. The KU20 can be mounted in a 19-inch rack and comes complete with a mounting plate.

Technical specifications
HDMI 1.3: 1
Main Outputs: 6
HDMI 1.3 (Loop): 1
SFP Slot Type: 10G
SFP Slot Quantity: 1
Scaling Function: Yes
DMX Control: Art-Net
Maximum Loading Capacity: 3.9 Mpx
Maximum Input Resolution: 1920 x 1200
Control Options: Ethernet
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 25 W
Power Connector In: IEC
Data Connector In: RJ45
Data Connector Out: RJ45
