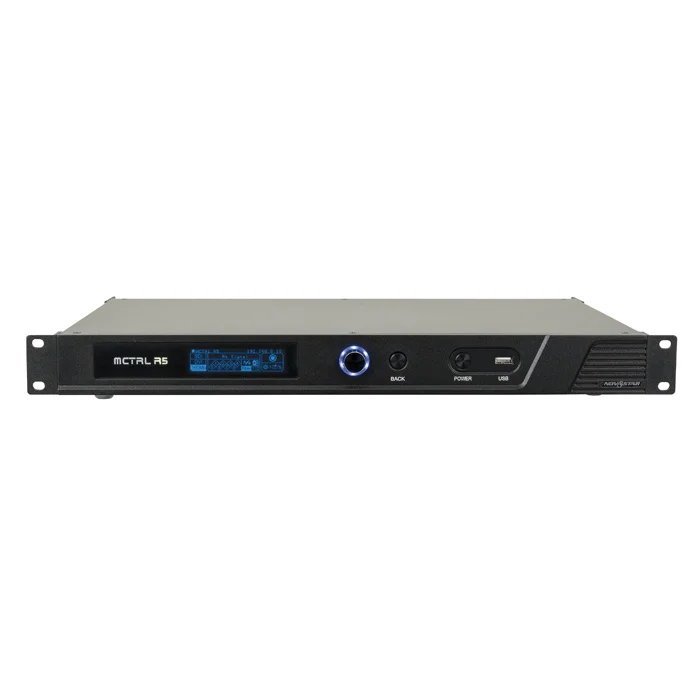

Novastar | 101650 | Phobos R5 | Sender Box

The Novastar Phobos MCTRL R5 is an independent master with a revolutionary significance. The loading capacity of a single unit is up to 3840x1080@60Hz, which is able to meet the on-site requirements of oversized LED displays.
Working with the A8s or A10s receiving card, the MCTRL R5 supports free screen configuration on SmartLCT, presenting full rotation of the display screen at any angle, adding diversity to images, and bringing different visual experience to users

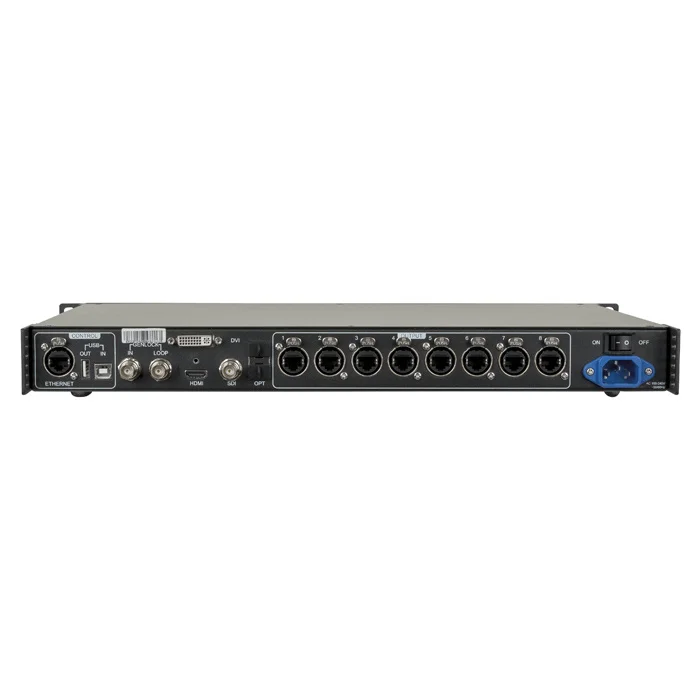

The design of MCTRL R5 is innovative, it allows to configure a display at any time without PC. Various video inputs such as HDMI, dual-link DVI,SDI etc. and outputs of 8-channel Neutrik Gigabit Ethernet ports as well as 2-channel optical fibre ports are supported.

Technical specifications
HDMI 1.4a: 1
Dual Link DVI: 1
6G-SDI: 1
Main Outputs: 8
GenLock: In & Out
Control System: Novastar
Maximum Loading Capacity: 5.2 Mpx
Control Options: Ethernet / USB
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 25 W
Power Connector In: IEC
Data Connector Out: etherCON / RJ45
