Novastar | 101668 | H Series 1x 12G-SDI Input Card | Up to 4096x2160 @ 60 Hz

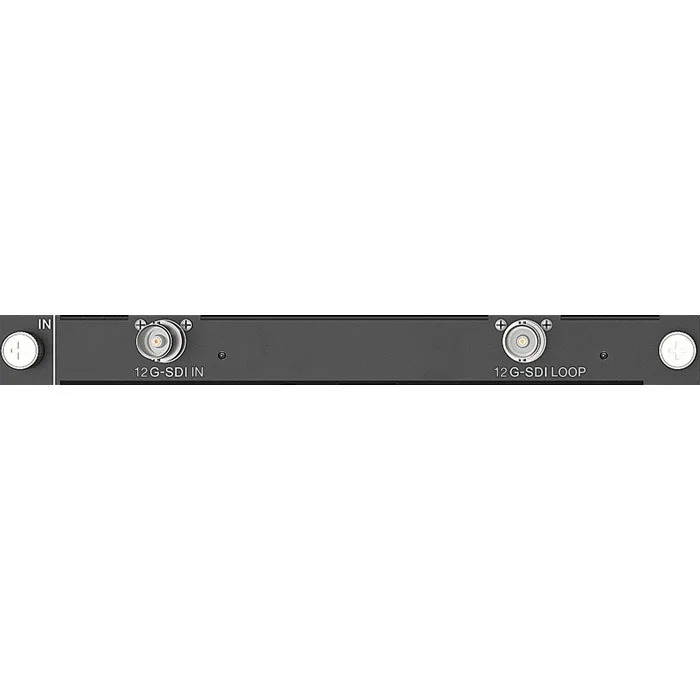

The H Series 1x 12G-SDI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It supports resolutions of up to 4096x2160 @60 Hz and 1080i/576i/480i de-interlacing processing. It supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and SMPTE 259 (SD) SDI signals. The 12G-SDI Loop output forwards the 12G-SDI input signal. Two status LEDs indicate if the input signal is valid.

Technical specifications
12G-SDI: 1
Input Slots: 1
12G-SDI (Loop): 1
Maximum Input Resolution: 4096 x 2160
