Novastar | 101670 | H Series 16x RJ45 plus 2x Fibre 4K Sending Card | Drives up to 10,400,000 pixels

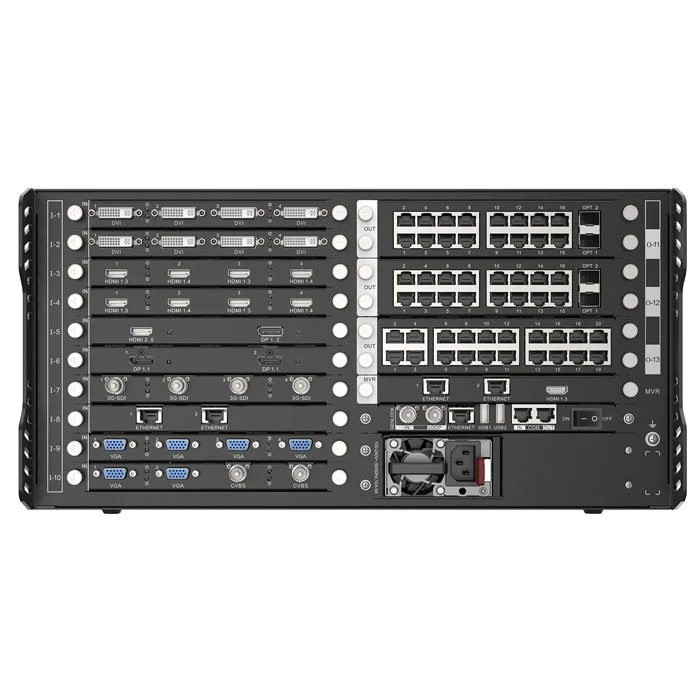

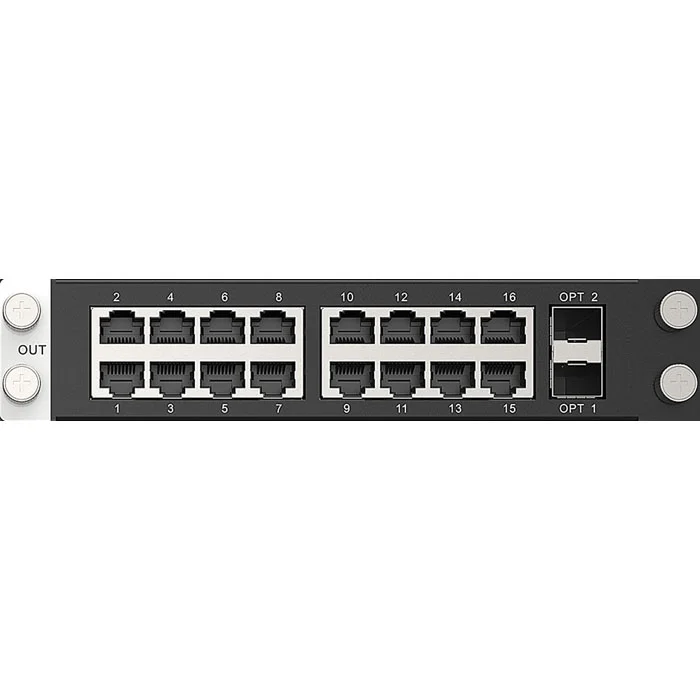

The H Series 16x RJ45 plus 2x Fibre Sending Card is a 4 K sending card for the H Series H2/H5/H9/H15 Video Wall Splicers. It has 16 RJ45 Gigabit Ethernet outputs. Each output can drive up to 650,000 pixels in 8-bit or 320,000 pixels in 10-bit colour depth. Each output can be individually configured as a main or backup port. The two optical fibre outputs support single and multi mode fibre transmission. OPT 1 passes the signals of Ethernet ports 1-8, OPT 2 passes the signals of Ethernet ports 9-16.

Technical specifications
Main Outputs: 16
Output Slots: 2
SFP Slot Type: 10G
SFP Slot Quantity: 2
Scaling Function: Yes
Maximum Loading Capacity: 10.4 Mpx
Greyscale Processing: 10 bit
Data Connector Out: RJ45
