Novastar | 101685 | H Series 4x Fibre Sending Card | Drives up to 20,800,000 pixels

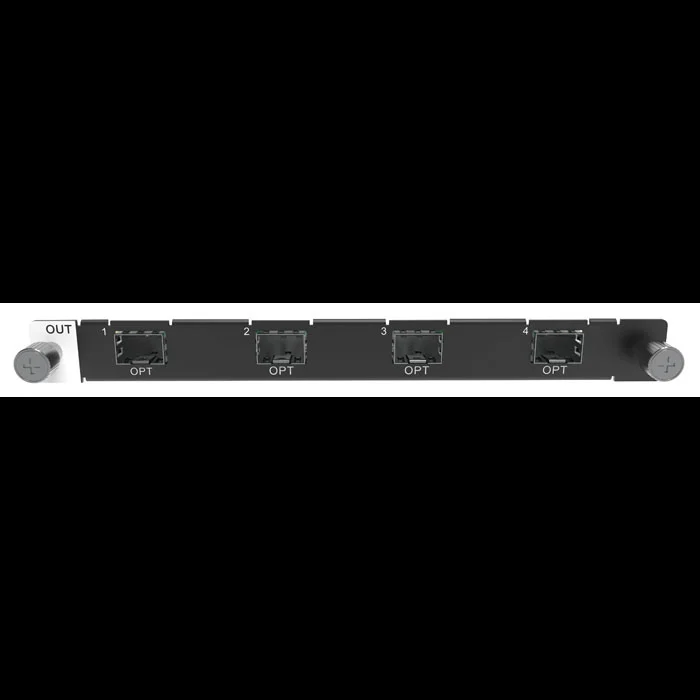

The H Series 4x Fibre Sending Card is a 4K sending card for the H Series H2/H5/H9/H15 Video Wall Splicers that is compatible with the CVT10S and CVT4KS fibre converters. It has four 10G optical output ports. Each output can drive up to 5,200,000 pixels at 8-bit, which is equal to that of 8 Ethernet ports. In total, it can handle a maximum of 20,800,000 pixels.
Each output can be individually configured as an independent, a copy or a backup port. The card supports both SM and MM optical modules and can achieve a transmission distance of up to 10 km. Four 10G SFP+ Single Mode optical modules are included with the card and are pre-installed in the OPT ports.

Technical specifications
Output Slots: 1
SFP Slot Type: 10G
SFP Slot Quantity: 4
Scaling Function: Yes
Maximum Loading Capacity: 20.8 Mpx
Greyscale Processing: 10 bit
