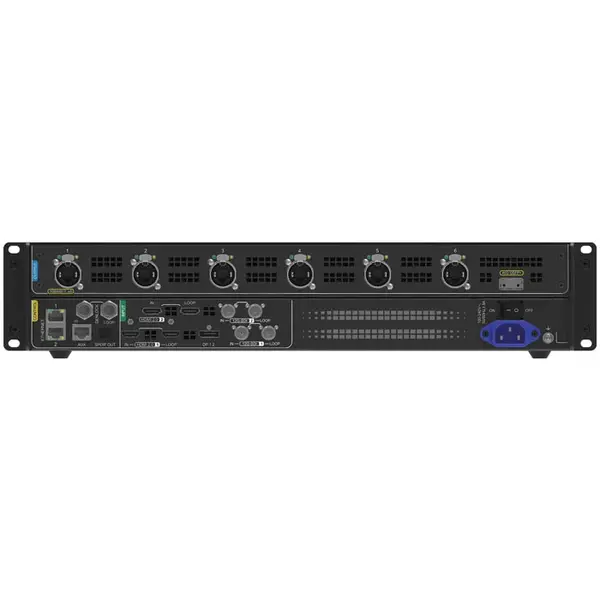

Novastar | 101697 | CX40 Pro | LED display controller

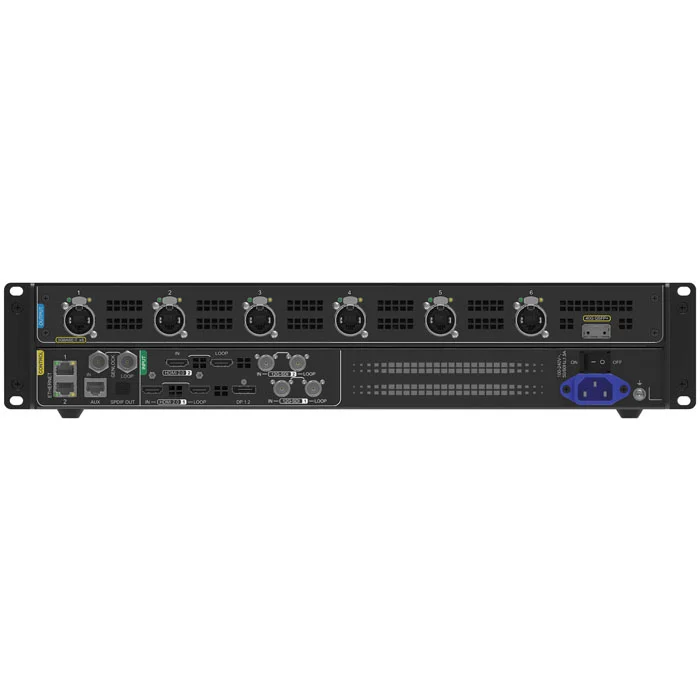

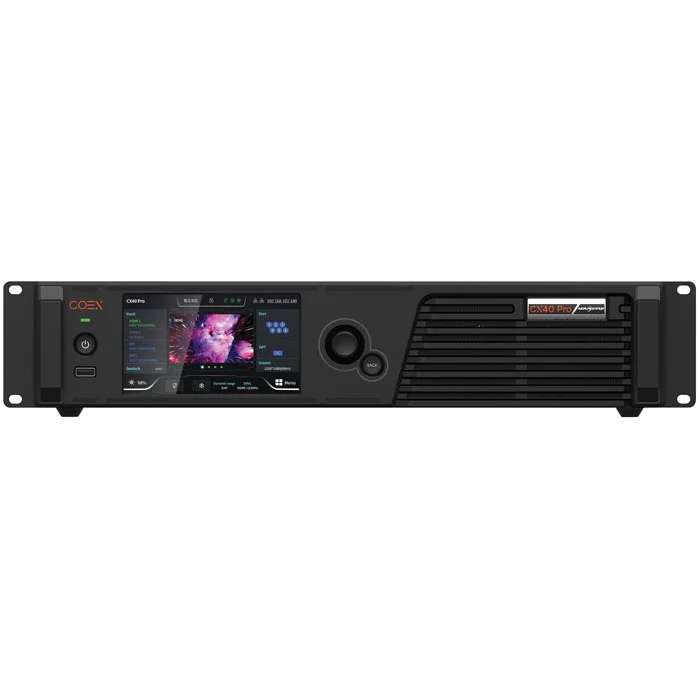

The CX40 Pro is a 4K LED display controller by Novastar. A 5.5-inch LCD touchscreen, a control knob and a back button on the device make it easy to control when you don’t want to use the comprehensive, user-friendly VMP software. Cascading control via Ethernet is possible too. The CX40 Pro offers a range of inputs and outputs for ultimate flexibility. Inputs include two HDMI 2.0 + loop, one DP 1.2 and two 12G-SDI + loop, while the outputs consist of six 5GB Ethernet ports and one 40G optical port. There are also two network ports, one auxiliary port, an S/PDIF optical out and a Genlock input and loop on board. Advanced features include three independent layers, image scaling, colour replacement, 14Ch colour correction, low latency support and display system monitoring. Note that the CX40 Pro uses a new type of receiver card (CA50E/CA50C/XA50) and is, therefore, not backwards compatible.

Technical specifications
DP 1.2: 1
HDMI 2.0: 2
12G-SDI: 2
Main Outputs: 6
HDMI 2.0 (Loop): 2
12G-SDI (Loop): 2
SFP Slot Type: 40G
SFP Slot Quantity: 1
Scaling Function: Yes
Layers: 3
GenLock: In & Out
Maximum Loading Capacity: 9 Mpx
Maximum Input Resolution: 4096 x 2160
Control Options: Ethernet
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 105 W
Power Connector In: IEC
Data Connector In: RJ45
Data Connector Out: etherCON / RJ45
