Novastar | 101698 | CX80 Pro | LED display controller

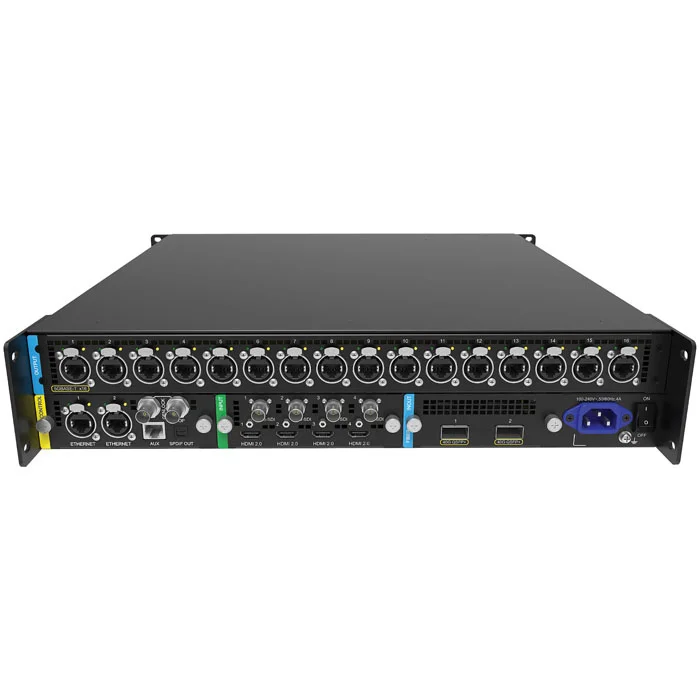

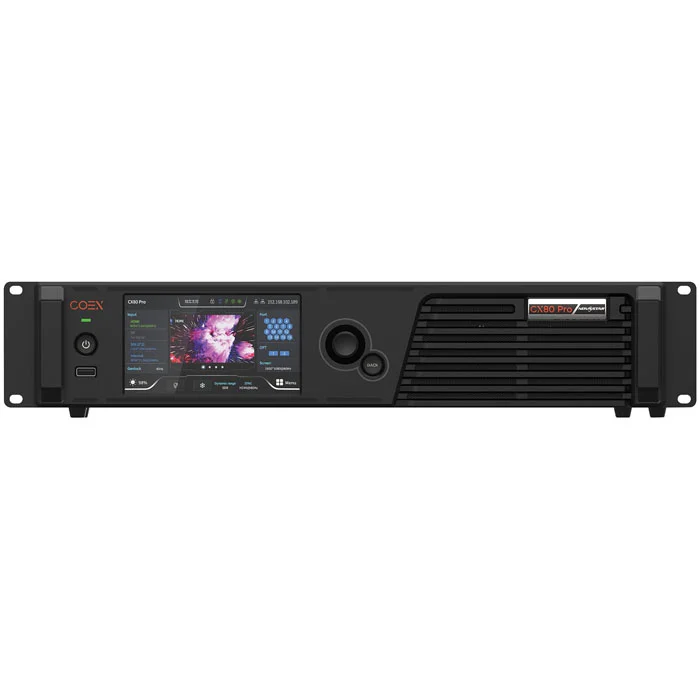

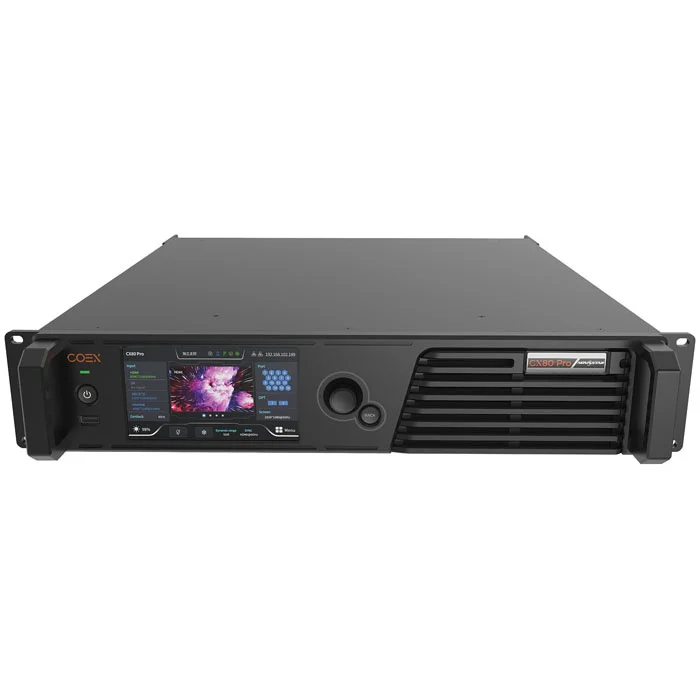

The CX80 Pro is Novastar’s flagship 8K LED display controller. It offers a range of inputs and outputs for ultimate flexibility. There are four HDMI 2.0 and four 12G-SDI inputs, while the outputs consist of sixteen 5GB Ethernet ports and two 40G optical ports. There are also two network ports, one auxiliary port, an S/PDIF optical out and a Genlock input and loop on board. A 5.5-inch LCD touchscreen, a control knob and a back button on the device make it easy to control when you don’t want to use the comprehensive, user-friendly VMP software. Cascading control via Ethernet is possible too. Advanced features include three independent layers, image scaling, colour replacement, 14Ch colour correction, low latency support and display system monitoring. Note that the CX80 Pro uses a new type of receiver card (CA50E/CA50C/XA50) and is, therefore, not backwards compatible.

Technical specifications
HDMI 2.0: 4
12G-SDI: 4
Main Outputs: 16
SFP Slot Type: 40G
SFP Slot Quantity: 2
Scaling Function: Yes
GenLock: In & Out
Maximum Loading Capacity: 35.4 Mpx
Maximum Input Resolution: 4096 x 2160
Control Options: Ethernet
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 170 W
Power Connector In: IEC
Data Connector In: etherCON / RJ45
Data Connector Out: etherCON
