HOFKON 400-3HD triangle truss, heavy duty

HOF - HOFKON 400-3HD

HOF supplies truss material in the most common sizes. These include truss with one-, two-, three-, four- or five-point attachment. The HOFKON series is HOF's own format, which features tapered connections. There is also HOFPRO, a series compatible with equipment from Prolyte, HOFBOLT which is mounted with bolted connections and HOFFORK with forked connections.

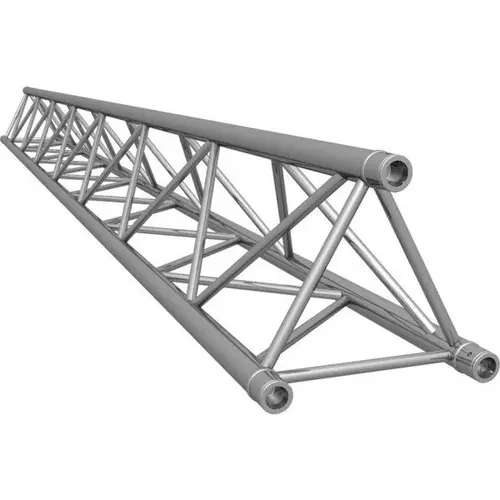

Trusses in various lengths

HOFKON 400-3HD aluminium truss has a tube diameter of 48mm with a material thickness of 3mm and is available in truss lengths of 250, 500, 1000, 1,500, 2,000, 2,5000, 3,000, 3,500, 4,000, 4,500 and 5,000mm. There are 2-, 3-, 4- and 5-way corner pieces with various angles: 45°, 60°, 90°, 120°, 135°. The load capacity of HOF's HD series is higher. The width of the truss is 398mm.

TECHNICAL DATA:

• Measure: 400 x 350 mm
• Tube: 48 x 3 mm
• Bracing: 25 x 2 mm
• Material: EN-AW 6082 T6
• Eurocode 9 tested
• TÜV tested factory

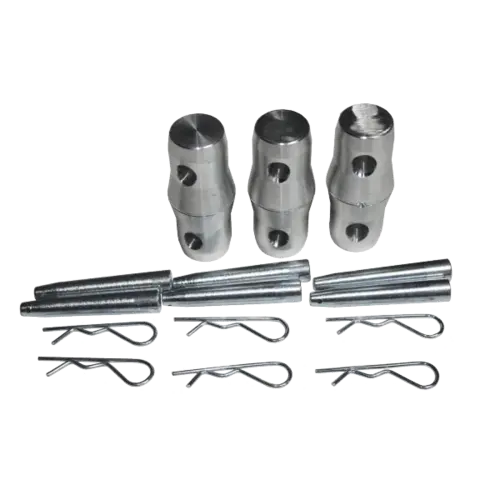

• incl. conical connector set (3x conical connector, 6x truss pin, 6x r-clip)
• Powder coating by request
