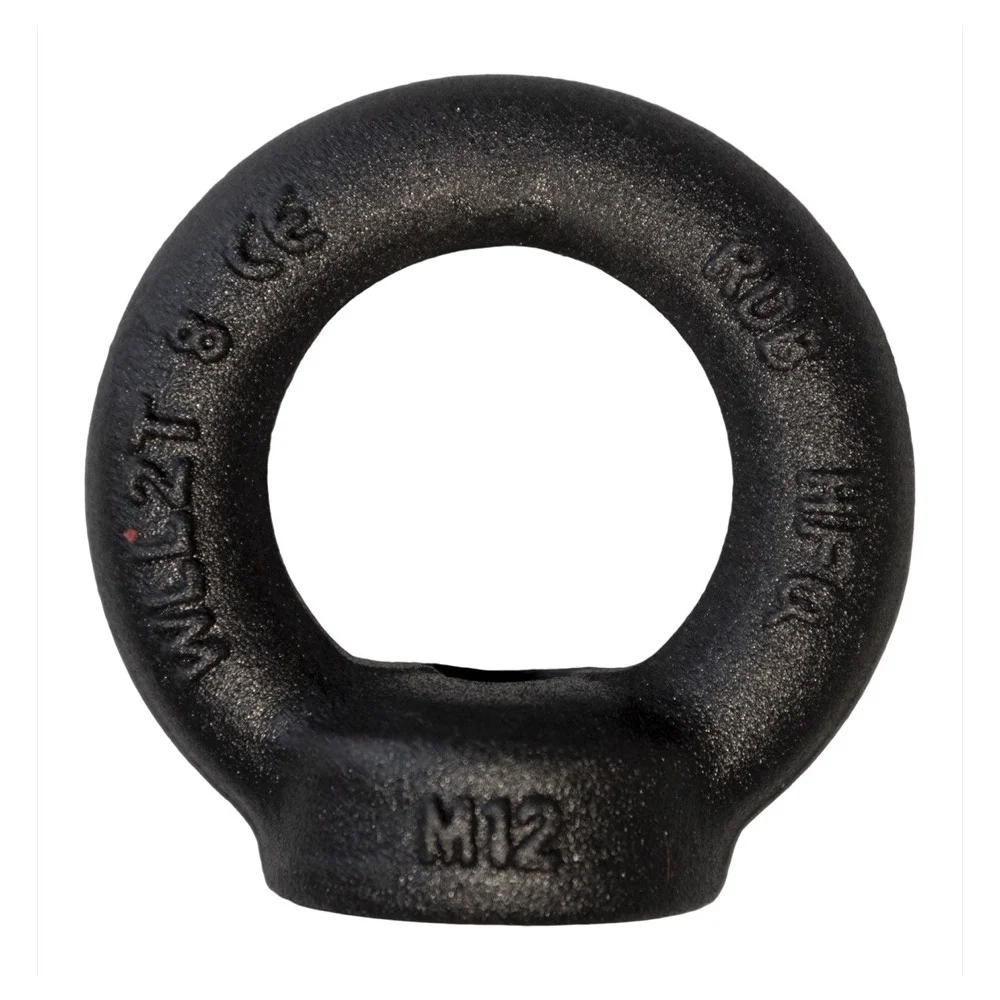

Eller | Eye nut | Grade 8 | Black | DIN582
Colour: Black, WLL (tons): 0,4 tons (M6)
€ --,--
Add your review
Eller | Eye nut | Grade 8 | Black | DIN582
Eller | Eye nut | Grade 8 | Black | DIN582
Article code OOGMRZM06000
Delivery time on request
Eye nuts can be used for lifting decor and rigging or for making anchor points, among other things. Read more
Description
Eye nut | Grade 8 | Black | DIN582
Manufactured to DIN582, this eye nut is suitable for rigging in theatre, TV and events industry.
Specifications Eye Nut Grade 8 Black:
- Material: Grade 8
- Safety factor: MBL equals 4x WLL
- Finish: Black
- Certification 2.1, 2.2, 3.1
Stated WLL is based on upright use.

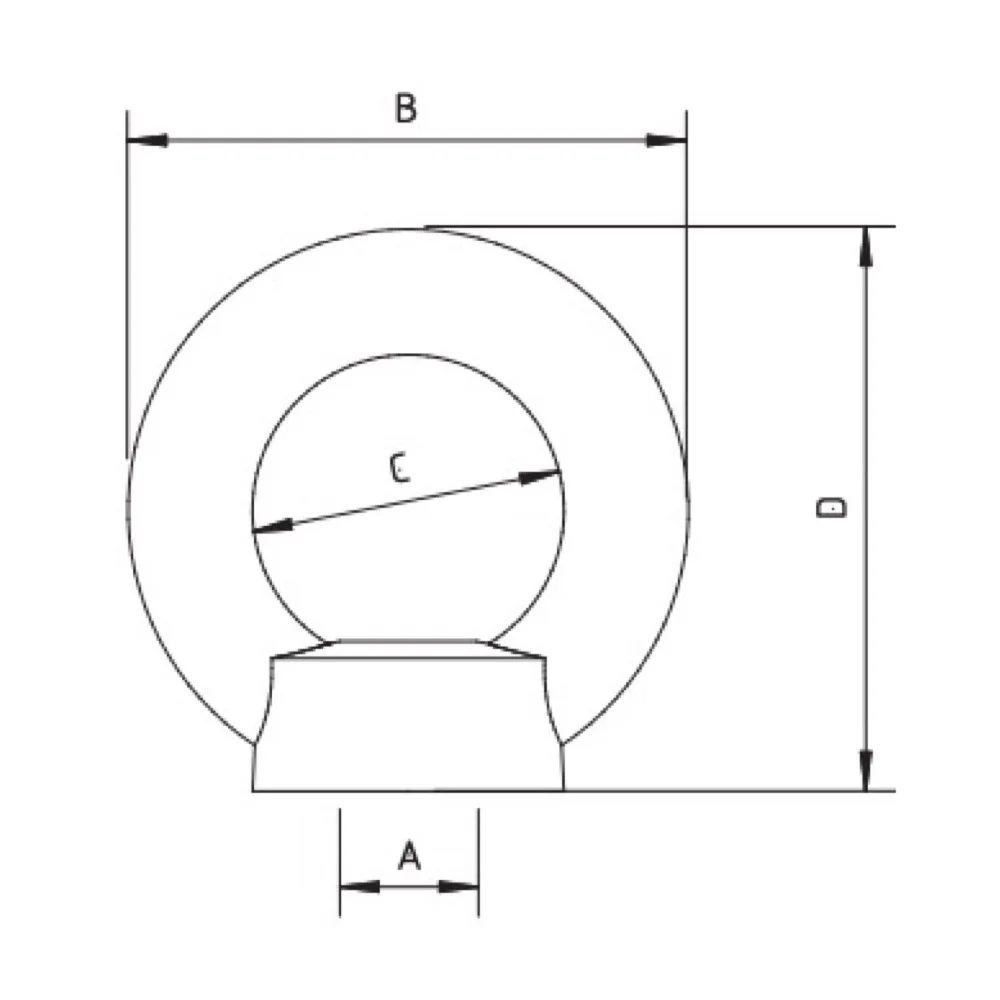

| Model | WLL (tons) at angle of 0º | a (mm) | b (mm) | c (mm) | d (mm) |
| M6 | 0,4 | M6 | 36 | 20 | 36 |
| M8 | 1 | M8 | 36 | 20 | 36 |
| M10 | 1 | M10 | 45 | 25 | 45 |
| M12 | 2 | M12 | 53 | 30 | 53 |
| M16 | 4 | M16 | 62 | 35 | 62 |
| M20 | 6 | M20 | 62 | 34 | 62 |
An Eye Nut can be used in combination with a Reutlinger wire rope holder, among others.
