Eller | Eyebolt | Grade 8 | Black | DIN580
Colour: Black, WLL (tonne): 0.4 tonne (M6)
€ --,--
Add your review
Eller | Eyebolt | Grade 8 | Black | DIN580
Eller | Eyebolt | Grade 8 | Black | DIN580
Article code OOGBTZM06000
7 in stock
Directly available
Eye bolts can be used, among other things, for hoisting decor and rigging or for making anchor points. Read more
Description

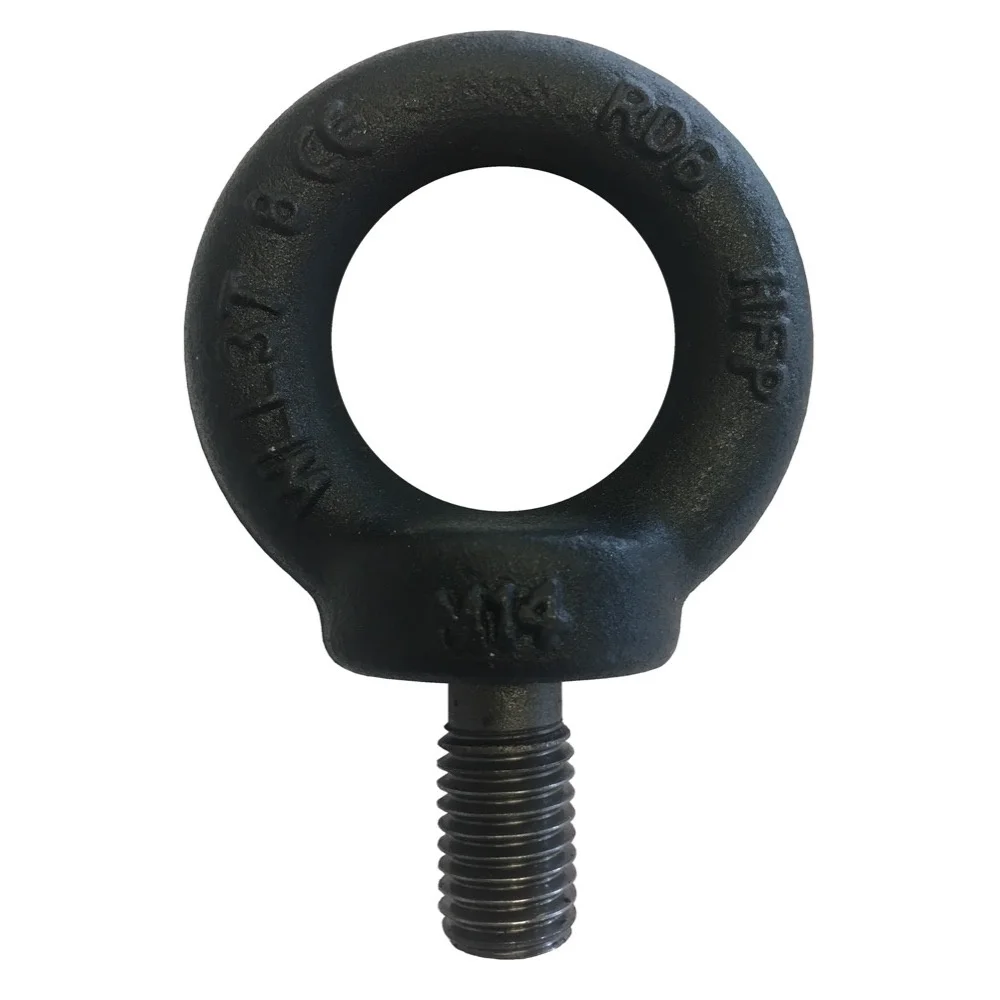

Eyebolt | Grade 8 | Black | DIN580
This eye bolt is manufactured to DIN580 and is suitable for rigging in theatre, TV and events industry.
Specifications Eyebolt Grade 8 Black:
- Material: Grade 8
- Safety factor: MBL equals 4x WLL
- Finish: Black
- Certification 2.1, 2.2, 3.1
Stated WLL is based on upright use.

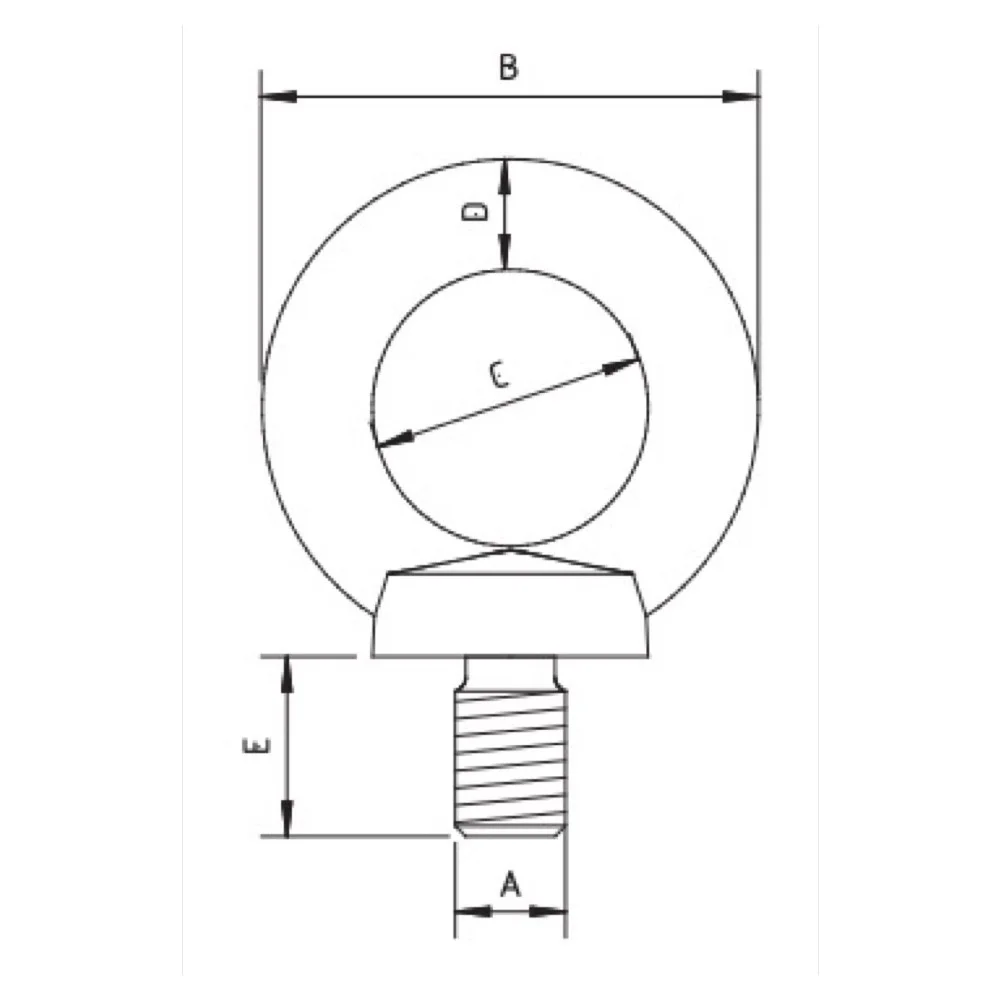

| Model | WLL (tons) at angle of 0º | a (mm) | b (mm) | c (mm) | d (mm) |
| M6 | 0,4 | M6 | 36 | 20 | 36 |
| M8 | 1 | M8 | 36 | 20 | 36 |
| M10 | 1 | M10 | 45 | 25 | 45 |
| M12 | 2 | M12 | 53 | 30 | 53 |
| M16 | 4 | M16 | 62 | 35 | 62 |
| M20 | 6 | M20 | 62 | 34 | 62 |
An Eye Nut can be used in combination with a Reutlinger wire rope holder, among others.
