Showgear | PLE-30-040 | 4- or 8-channel hoist control | DC
8-channel
€ --,--
Showgear | PLE-30-040 4-channel chain hoist controller Read more

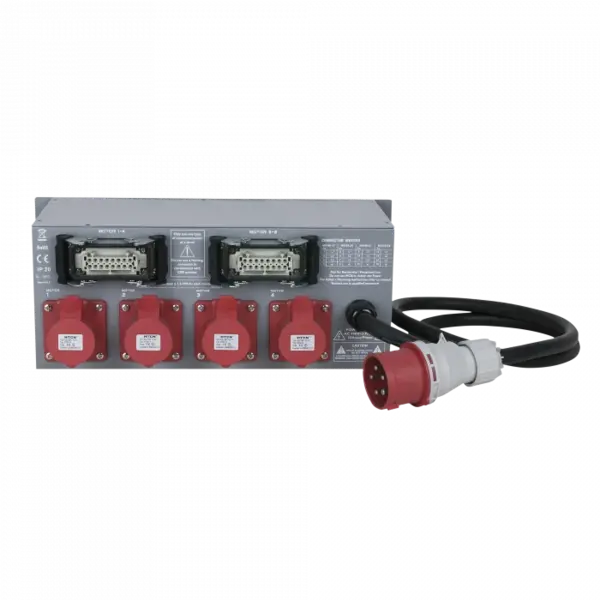

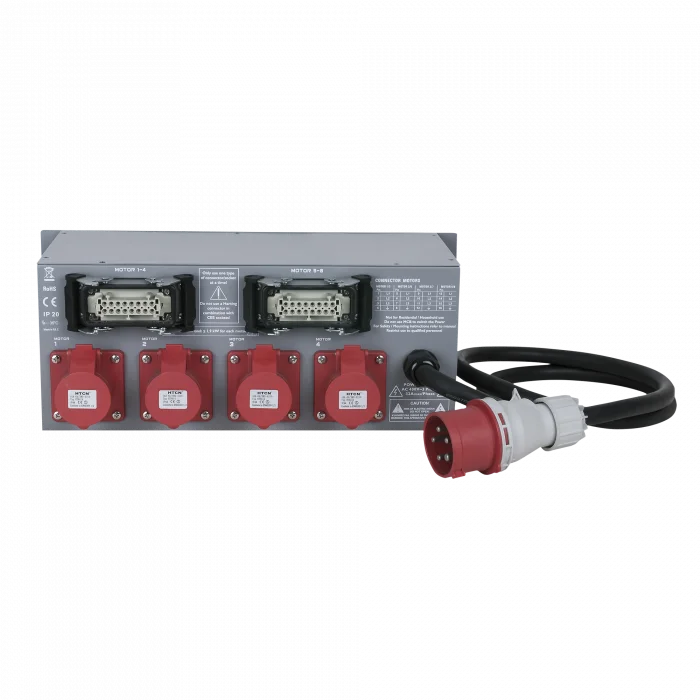

The Showgear controller for chain hoists is a dedicated controller for all popular directly controlled hoists such as the CM Lodestar. Each of the four hoists can be individually selected to go up or down or selected. On the back of the unit are four 4-pin CEE sockets as well as a 16-pin multipin for connecting a breakout box.
Type of control | DC |
Number of channels | 4- or 8-channel |
Power supply | 400 VAC 3 Phase |
Power connector in | CEE5P 32 A |
Power connector uit | CEE4P 16A / HAN16 Out |
Rated current | 10 or 16A |
Length | 278mm |
Height | 4U |
Width | 19" |
Weight | 10 or 10.5kg |
