Showtec | 40080 | Phantom 12R Hybrid | 300 W Hybrid Moving Head
The Showtec Phantom series offers a wide range of reliable and high performance moving light effects, consisting of various types of Moving Head fixtures (Spot, Wash, Beam, Hybrid, and Matrix FX) and a Moving Zoombar. They all look stylish and create amazing (dynamic) optical effects. Each Phantom fixture can be controlled manually but also has other control options, like DMX and Master/Slave. Phantom units are not only user-friendly, they also contribute to quick rigging on stage due to their lightweight and compact design with a Quick Lock Bracket system or one-clamp mount.
The Phantom series consists of a diverse range of moving show light units. Consider, for example, the Phantom Spots with a wide beam angle, which covers a large surface with colourful moving gobos. If you prefer a razor-sharp beam for events with a high energy level, then the Phantom 3R Beam is an excellent option in combination with smoke or mist. The Phantom 180 Wash offers yet another Moving Head effect, providing a soft edged output with four separately controllable sections and a wide adjustable beam angle, perfect for vivid colour-mixing on stage.
The Phantom Hybrid and Matrix FX are special units. The Hybrid is able to create Spot, Wash and Beam effects while the Matrix FX offers Individual Pixel Control (5 x 5) on which you can display detailed animations, such as characters and numbers.
Each fixture offers multiple control options, functionalities and effects. Also, optional dedicated flight cases are available for safe and easy transport. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

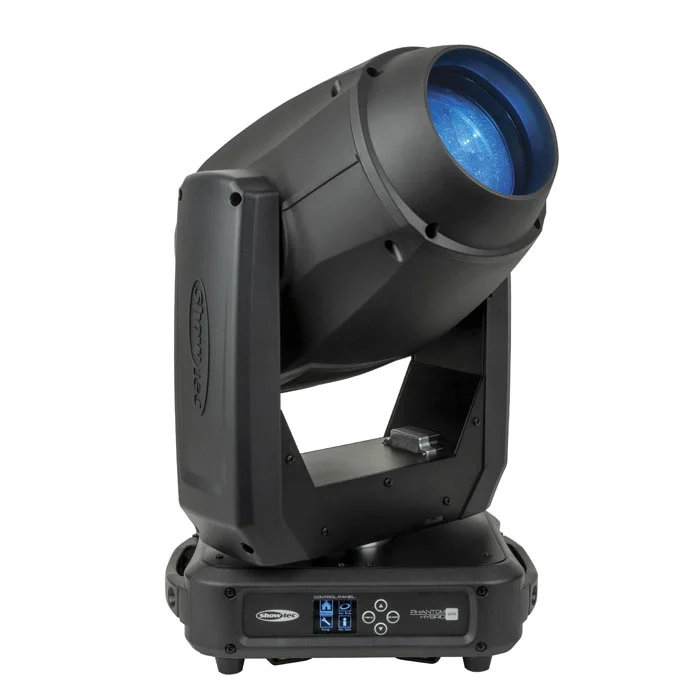

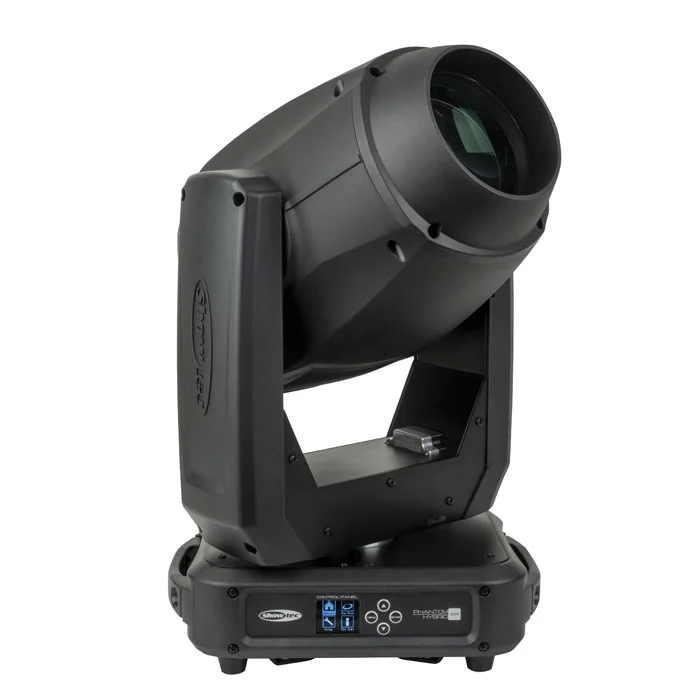

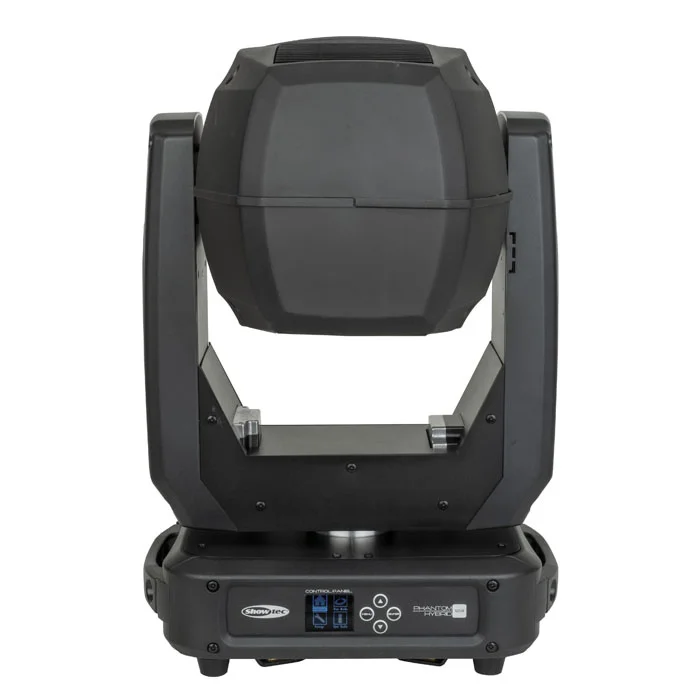

The Showtec Phantom Hybrid 12R is a bright and versatile 300 watt hybrid moving head for a seamless transition from Beam to Spot to Wash. With its wide motorised zoom (2.2° - 48.8 °), focus and frost, you can create versatile effects. Namely from a tight focused beam and a wide gobo projection to a soft wash effect.
The Phantom Hybrid 12R can create stunning visual effects since it is equipped with 17 fixed metal gobos and 8 removable rotating glass gobos + open. In addition, it has two prisms of 8 and 24 facets that can be used simultaneously for dynamic projections. All these effects can be displayed in 12 dichroic colours + white.
Despite the high-quality and versatile functionalities, the Phantom Hybrid 12R is very quick and easy to rig on stage. Namely, it's equipped with Quick-Lock brackets and you have the option to opt for a W-DMX connection (wireless).
Please be aware that you will need an external W-DMX module to use the wireless function. This is not included.
Technical specifications Light Source Type: Discharge Light Source Quantity: 1 Light Source Power: 300 W Luminous Flux (Total): 8600 lm CRI: 80 CCT: 7200 K Beam Angle Minimum (Circular): 2.2° Beam Angle Max. (Circular): 48.8° Zoom Type: Motorised Frost: Yes Focus: Motorised Control Mode: Auto / DMX / Manual / Master Slave / Sound DMX Channels: 14 / 18 Protocols: DMX Wireless: Optional Display: LCD Dimmer: 0-100 % Strobe: 0-15 Hz Shutter: Yes Prism 1: 24-facet Circulair Prism 2: 8-facet Circulair Prism Overlay: Yes Colour System: Colour Wheel Dichroic Colour Wheel 1: 12 + Open Gobo Wheel 1: 17 + Open Gobo Wheel 2: 8 + Open Pan: 540° Tilt: 270° Power Supply: 100-240 V AC 50-60 Hz Power Consumption: 400 W Power Connector In: Power Pro Blue Power Connector Out: Power Pro Grey DMX Connector: XLR 3P In/Out Length (mm): 323 mm Width (mm): 220 mm Height (mm): 550 mm Weight: 16 kg IP Rating: IP20 (indoor use only) Housing: Metal / Plastic Colour: Black
