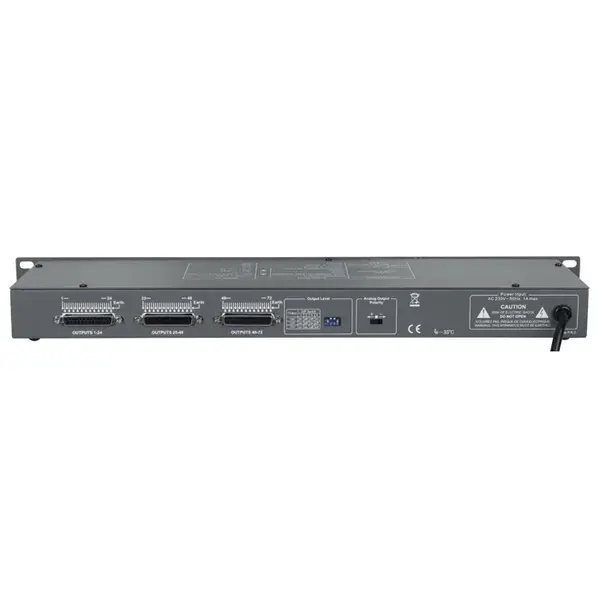

Showtec | 50348 | Multi Exchanger | DMX512 to 72-channel ANALOGUE output

Convert the signal from DMX512 to 72-Ch ANALOGUE output.
• Convert the signal from MIDI to 72-Ch
ANALOGUE output

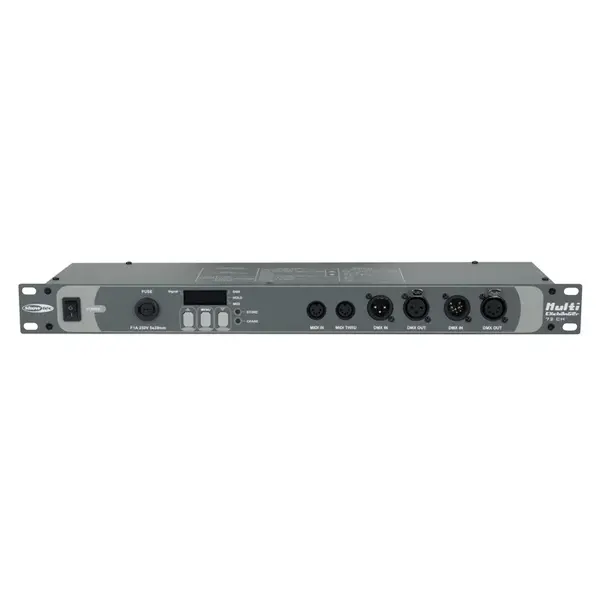

• The front panel alpha-numeric display
shows the DMX start address and
programming options
• The last scene remains when
DMX disappears
• Pre-store a scene and is available
for emergency
• Memory backup with EEPROM
• CHASE function can be selected
from 1 to 72 channel & speed control
• Select ANALOGUE output from +(-)10 V,
+(-)12 V and +(-)15 V
• Receive NOTE ON/OFF signal of MIDI

Technical specifications
Power Supply: 240 VAC 50-60 Hz
Power Consumption: 50 W
Power Connector In: Schuko Plug
DMX Connector: XLR 3P In/Out / XLR 5P In/Out
DMX Connector In: XLR 3P / XLR 5P
DMX Connector Out: XLR 3P / XLR 5P
MIDI Connector: Yes
Length (mm): 483 mm
Width (mm): 126 mm
Height (mm): 44 mm
Weight: 2.6 kg
Rack Units: 1 U
IP Rating: IP20 (indoor use only)
Housing: Aluminium die-cast
Colour: Gray
Control Mode: DMX / MIDI / Stand Alone
DMX Channels: 72
Display: LED
