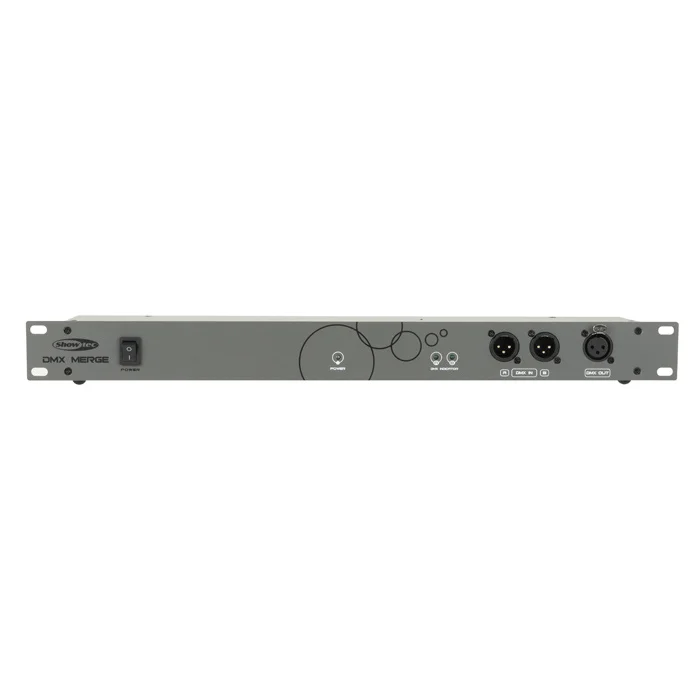

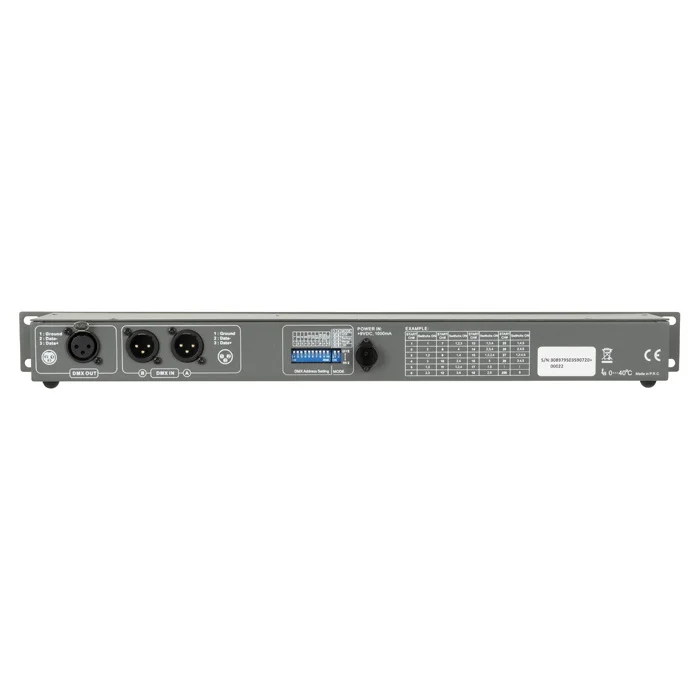

Showtec | 50359 | DMX Merge | 2-way DMX Merger

The Showtec DMX Merge allows you to combine two DMX controllers to one DMX line or to use a second desk as back-up desk.

The unit has 4 modes:
1) HTP (Highest Take Precedence) In this case you can use two similar desks with the same
addressing on one line. The DMX channel with the highest value has priority.

2) Back-up mode. The unit is connected to two DMX desks. Channel A has priority.
Once channel A fails or has no DMX channel B takes over the show.

3) Merge mode. Two desks can be merged on one line. E.g. you can run a scene setter
and DMX operator on one line. The Scene Setter will operate on channel 1-96 and the
DMX Operator will have the channels 97 and higher.
These positions can be freely addressed by the dip-switches.

4) LTP (Latest Take Precedence) In this case you can use two similar desks with the same
addressing on one line. The DMX input with the latest value change has priority.

Technical specifications
Power Supply: 9 VDC
Power Consumption: 4.5 W
Power Connector In: Low Voltage DC plug
DMX Connector: XLR 3P In/Out
DMX Connector In: XLR 3P
DMX Connector Out: XLR 3P
Length (mm): 483 mm
Width (mm): 73 mm
Height (mm): 44.5 mm
Weight: 1.15 kg
Rack Units: 1 U
IP Rating: IP20 (indoor use only)
Housing: Aluminium die-cast
Colour: Gray
Control Mode: DMX
DMX Channels: 512
Protocols: DMX
