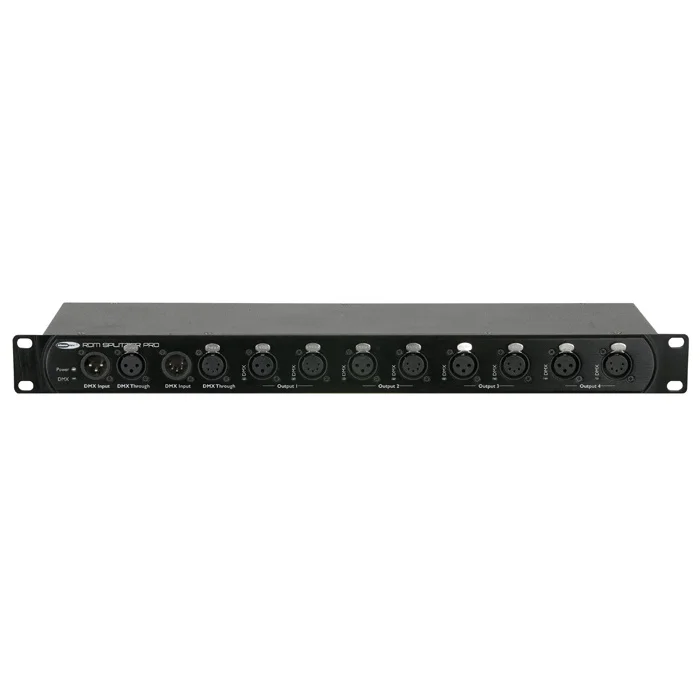

Showtec | 50787 | RDM Splitter Pro | 4-Channel DMX booster with RDM 3-pin & 5-pin XLR

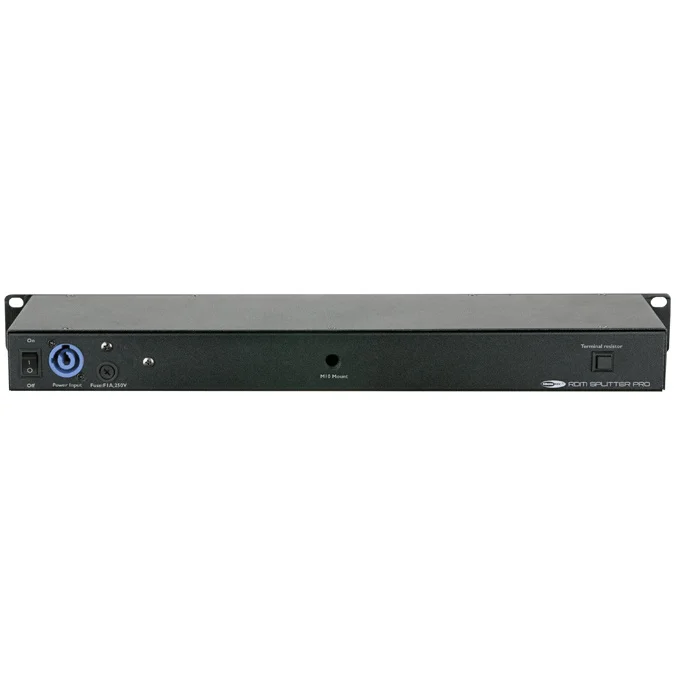

The Showtec RDM Splitter Pro is a universal DMX512 splitter to fulfil the demands of pro users. All outputs are equipped with separated optical isolated electronics to ensure that DMX/RDM signal will be distributed and regenerated in the most optimum quality. The signal indication LEDs show the speed and status of the present signal on the input and outputs. All DMX/RDM inputs and outputs supports RDM Protocol and are equipped with both 3 and 5-pin XLR connectors. The rugged housing is 19” rack mountable and has a M10 mounting point to assamble a clamp for rigging use.

Technical specifications
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 8 W
Power Connector In: Power Pro Blue
DMX Connector: XLR 3P In/Out / XLR 5P In/Out
DMX Connector In: XLR 3P / XLR 5P
DMX Connector Out: XLR 3P / XLR 5P
Length (mm): 483 mm
Width (mm): 135 mm
Height (mm): 46 mm
Weight: 2.2 kg
Rack Units: 1 U
IP Rating: IP20 (indoor use only)
Housing: Metal / Plastic
Colour: Black
Control Mode: DMX
Protocols: DMX / RDM
Universes: 1
