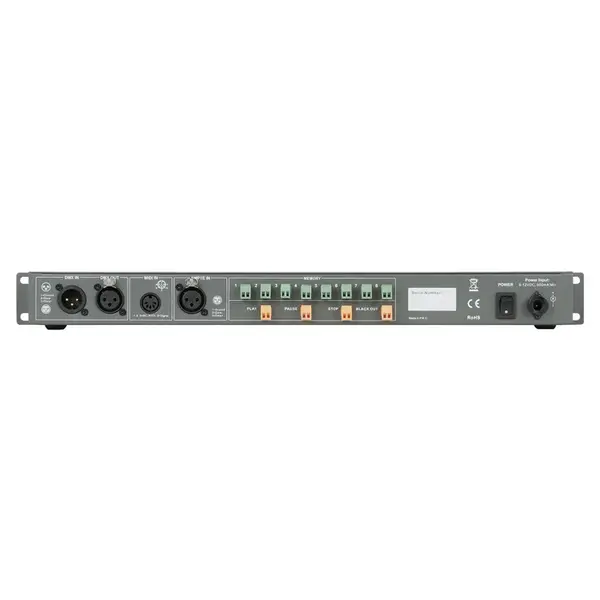

Showtec | 50821 | DR Pro Rack | DMX Recorder

The DR Pro Rack is a useful tool to store DMX values of complete Scenes, Chases or Shows. The total record time is 5 hours shared over the 8 memories. The basic functions are easy to control with the direct playback buttons at the front which makes it ideal for non-technical users. The unit can be locked with a password.

Technical specifications
Memory Type: SD-Card
Power Supply: 9-12 VDC
Power Consumption: 5 W
Power Connector In: Low Voltage DC plug
DMX Connector: XLR 3P In/Out
DMX Connector In: XLR 3P
DMX Connector Out: XLR 3P
Data Connector In: USB
Data Connector Out: USB
MIDI Connector: Yes
Length (mm): 482 mm
Width (mm): 78 mm
Height (mm): 44 mm
Weight: 1.2 kg
Rack Units: 1 U
IP Rating: IP20 (indoor use only)
Housing: Metal / Plastic
Colour: Gray
Control Mode: Auto / GPIO / Manual
DMX Channels: 512
Protocols: DMX
SMPTE Timecode: Yes
Display: LCD
Universes: 1
