Showtec | 51360 | Solaris 3.0 | High-power RGB Laser with ILDA control

The Showtec Solaris laser effects are highly accurate and powerful full-colour laser effect units, intended for a professional spectrum of applications. They offer exceptionally accurate control of their laser beam. Analogue intensity control ensures the best possible reproduction of the full-colour spectrum, allowing you to create formidable colours. In combination with the low divergence of the laser and the high scanning speeds, this results in razor-sharp images and beam contours in any colour.

The Solaris laser effects are fully protected against failures and comply with all necessary safety precautions. The units that are equipped with the Pangolin FB4 module unlock the full capabilities of the award-winning QuickShow software. With this specialised piece of software, creating a professional show is easy. It allows you to control your laser(s) via your PC through a full network setup. The Solaris laser effects offer you a professional piece of equipment, suitable for larger venues and professional shows.

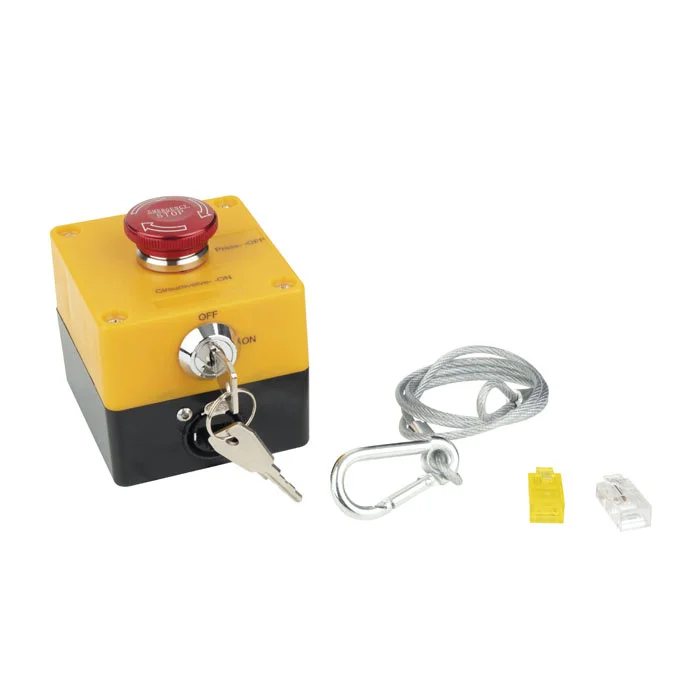

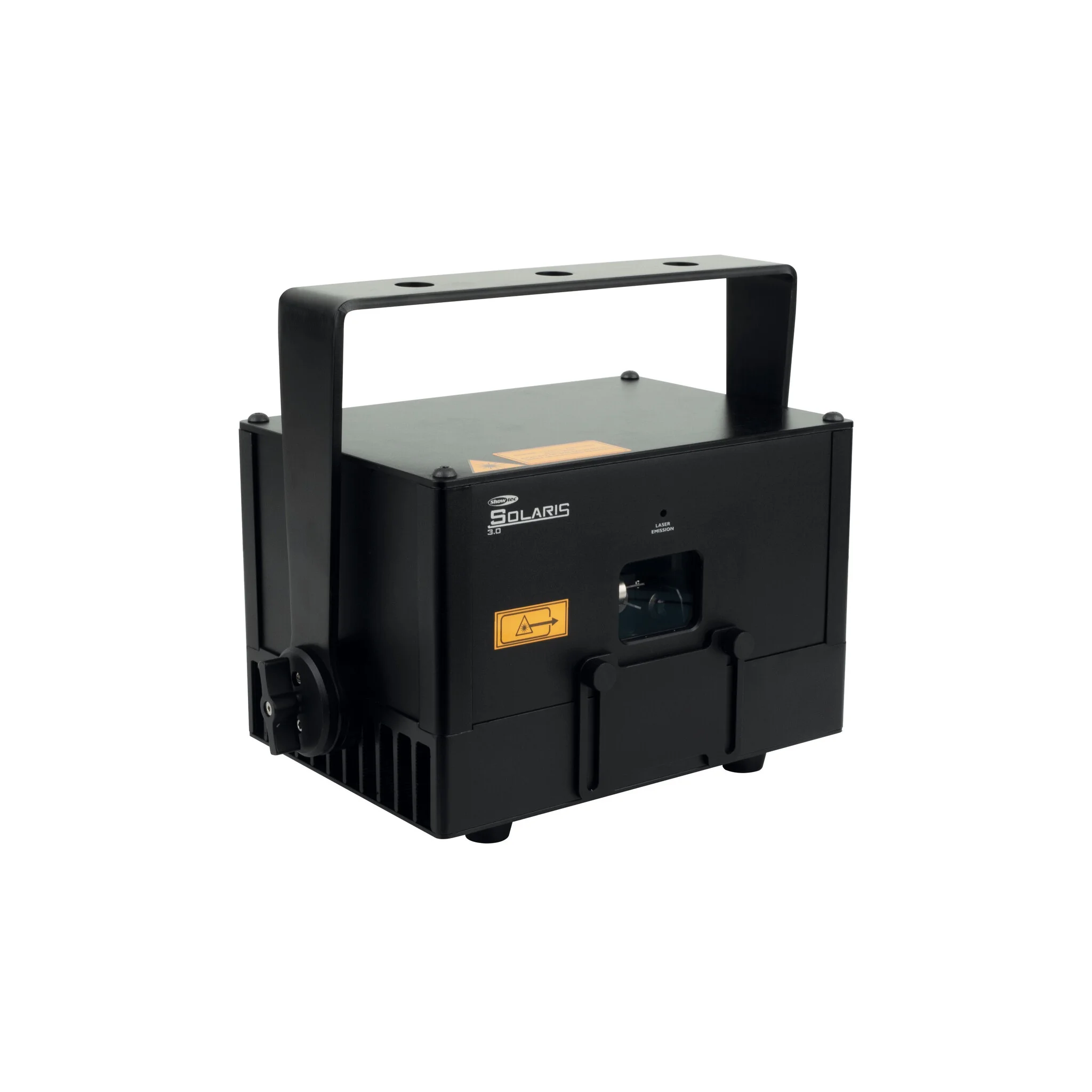

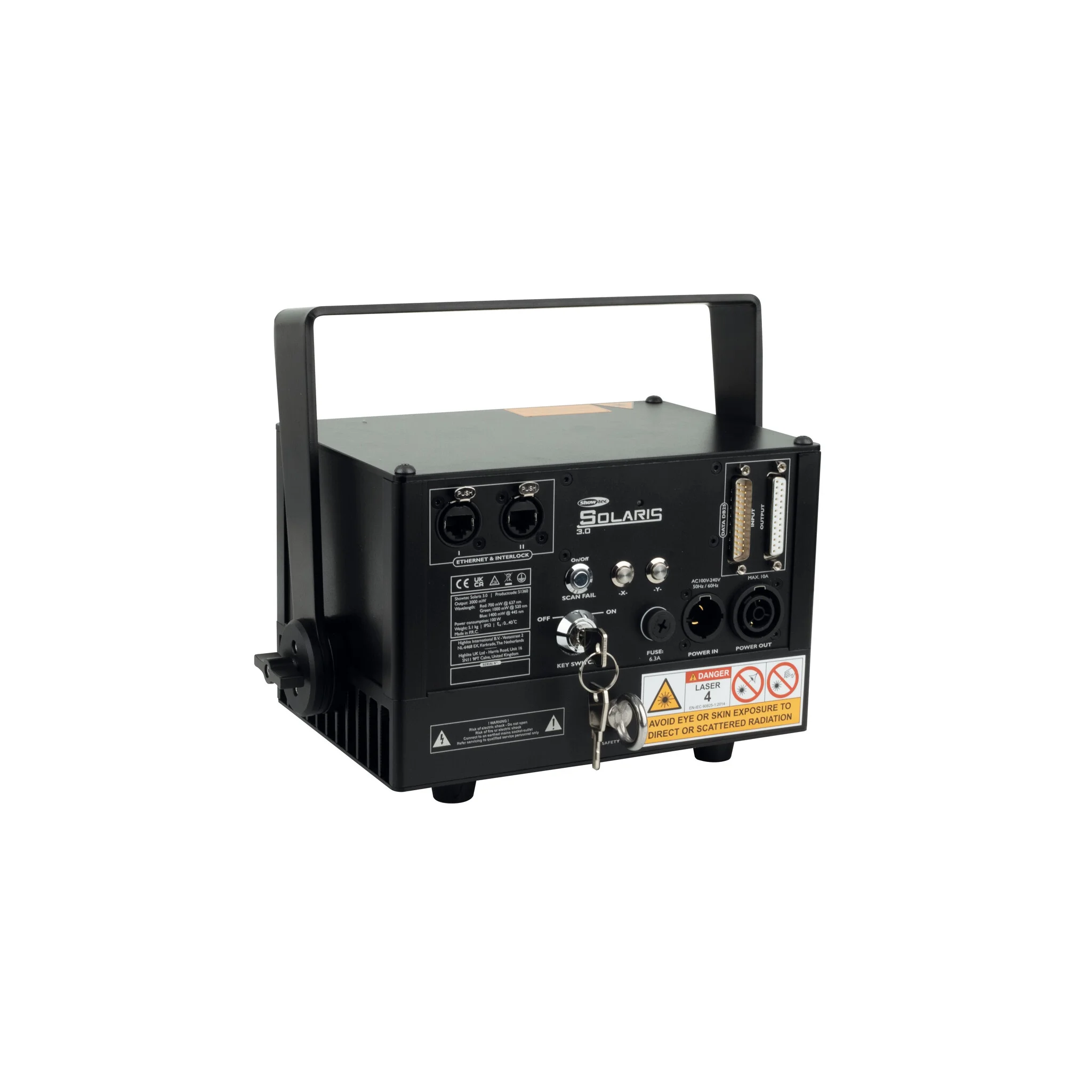

The Solaris 3.0 is a powerful 3,000-mW RGB laser projector, intended for use in large venues. You can control it through your lighting console or software by ILDA. By using linear analogue dimming modulation, the Solaris 3.0 can generate the full spectrum of colours. Its very precise and high-quality construction ensure perfect matching of the RGB beams and distortion-free images. Its wide 45° beam angle allows for large projection areas. It comes with all the necessary safety measures, like scanning system overload protection, a keyed interlock system, scan-fail safety, aperture masking plate, emergency stop system, and a keyed remote.

Technical specifications
Laser Power: 3000 mW
Laser Source: Diode
Laser Modulation: Analog
Laser Class: 4
Laser Colour: Red / Green / Blue
Control Mode: ILDA
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 100 W
Power Connector In: Power Pro True
Power Connector Out: Power Pro True
Data Connector: ILDA DB25
Height (mm): 220 mm
Width (mm): 284 mm
Depth (mm): 188 mm
Weight: 5.1 kg
IP Rating: IP20 (indoor use only)
Housing: Aluminium
Colour: Black
Laser Scanner: 30 kpps
Laser Classification Standard: EN-IEC 60825-1:2014+A11:2021
