Showtec | 61020 | CO₂ Bottle to 3/8 Q-Lock Adapter | Closed system

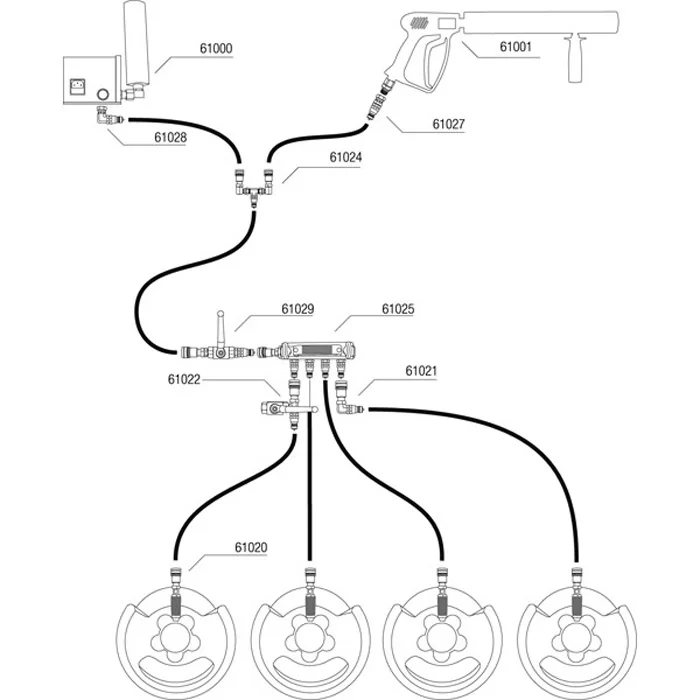

The Showtec CO2 Q-Lock system is a complete range of products to create a fast and safe way to build all kinds of CO2 setups. It can be applied for both rental and fixed installations. The Q-Lock products are all are equipped with male and female quick lock couplers. They have back pressure valves to guarantee a closed and save system at all times . The CO2 Q-Lock range consists of hoses, splitters, combiners, a distributor and various adapters. With the splitters and the combiners it is possible to integrate multiple shooters, FX Ice Jets or multiple bottles in one system. The adapters are used on the Showtec CO2 Ice Gun, FX Ice Jets or hoses with thread to upgrade them to all Q-Lock applications.

Note: If you use Q-Lock products always make sure that your Ice Guns and Ice Jets are prepared with CO2 3/8 Q-Lock female adapters.

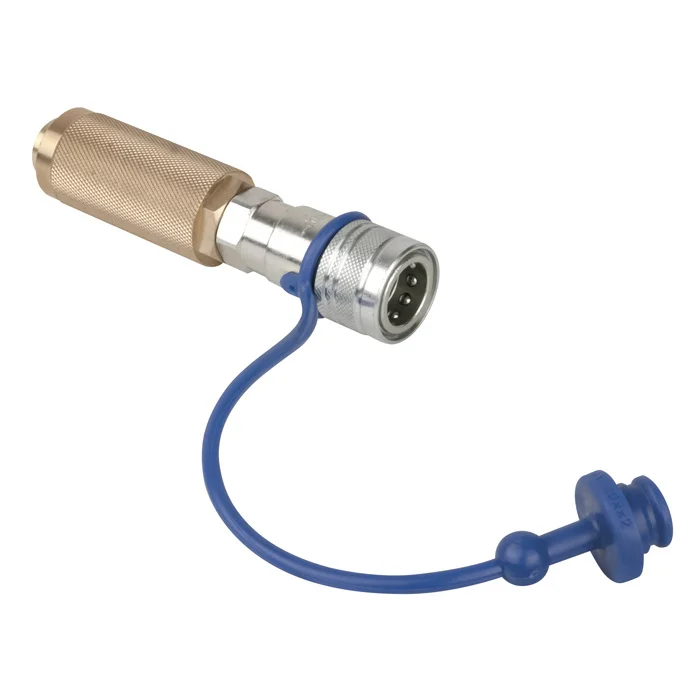

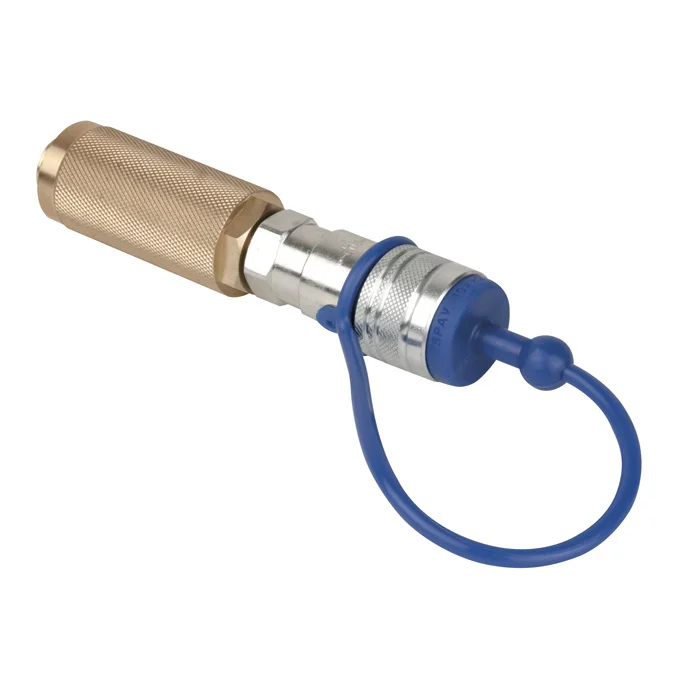

This adapter must be used to prepare your bottle for the CO₂ Q-Lock hoses. Each bottle in your setup should have this adapter to get integrated in the system. The adapter can be assembled without the need of special tools.

Technical specifications
Length (mm): 145 mm
Height (mm): 32 mm
Width (mm): 32 mm
Gas Connection: Quick-Lock
Gas Type: CO₂
