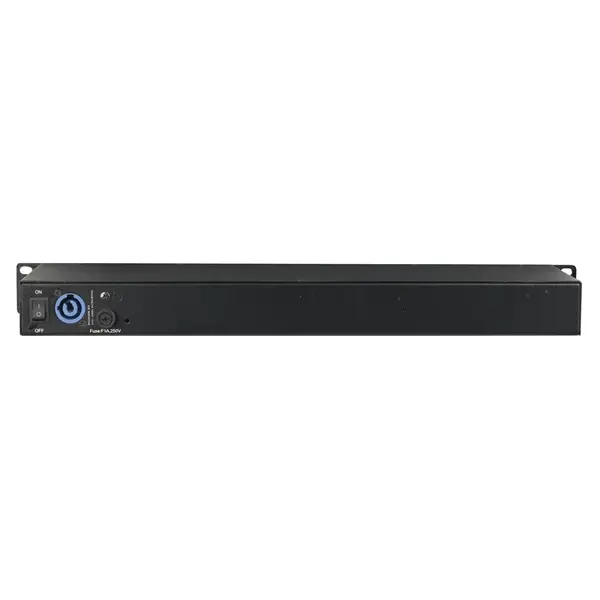

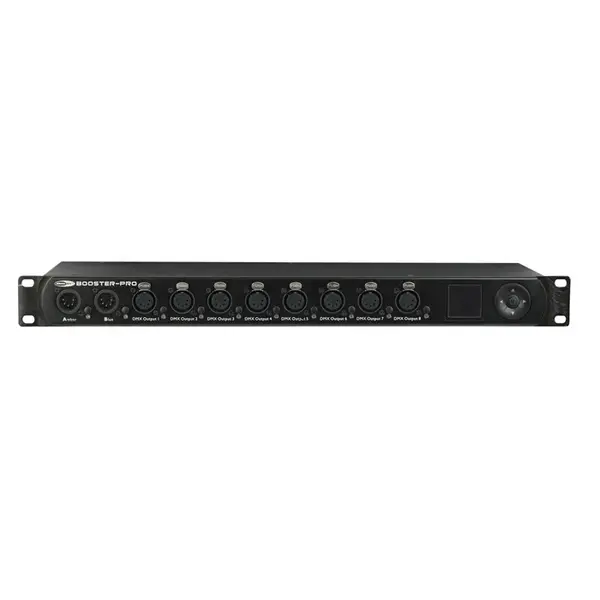

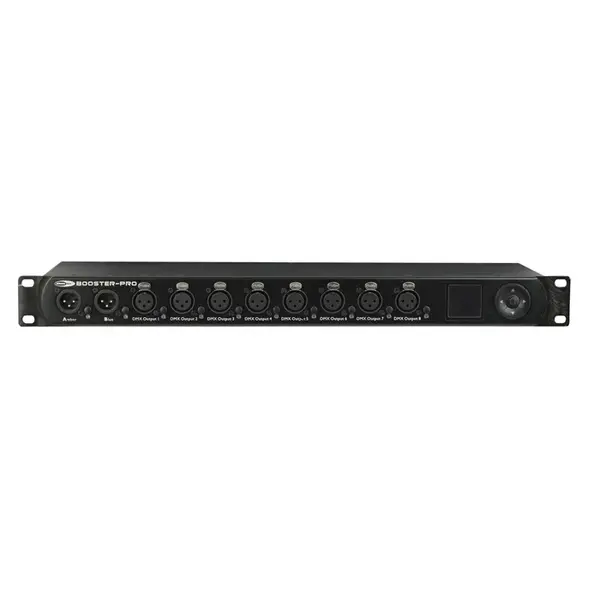

Showtec | Booster Pro | 2-8 DMX-/RDM-booster

The Booster Pro is the ultimate DMX tool and perfect for any rental company or and installation. The Booster Pro is an optically isolated DMX splitter and booster. The Booster Pro has 2 inputs that can be patched to 8 selectable outputs. To each output you can patch input A or B. The Booster Pro is fully compatible with RDM and offers real-time DMX monitoring. For specialised applications, DMX timing can be adjusted. Moreover, each output of the Booster Pro has a monitoring function, which monitors the status of the connected cables in real time. In case of a malfunction, the user is alerted with an audible signal. Using the intuitive LED display, you set all functions quickly and easily.

Technical specifications
Input voltage: 100-240 VAC 50-60 Hz
Power consumption: 5 W
Power connector in: Power Pro Blue
DMX connector: XLR 5P In/Out
DMX connector in: XLR 5P
DMX connector out: XLR 5P
Length (mm): 483 mm
Width (mm): 137 mm
Height (mm): 46 mm
Weight: 2 kg
Height units: 1 U
IP value: IP20 (indoor use only)
Housing: Metal / Plastic
Colour: Black
Control mode: DMX
Protocols: DMX / RDM / USITT

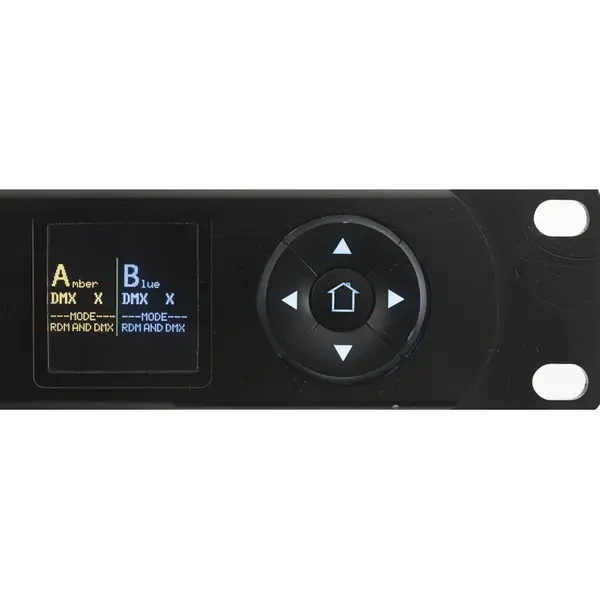

Screen: OLED
Universes: 2
