Showtec | Compact Par 18 Q4 | 18x 7 W RGBW LED Par

The Showtec Compact Par range offers compact and lightweight LED Par fixtures, from cold and warm white to punchy and pastel colours, suitable for indoor lighting and colour mixing. They are all equipped with a double bracket for easy floor positioning and fit any environment with the choice of both a black or grey design. The Compact Par fixtures are controllable manually, via DMX and Master / Slave in manual and automatic mode with many built-in programmes. The Compact Par series has a high value to performance ratio.

The Compact Par series offers a diverse set of silent working LED Par fixtures, from a Cool to Warm White (CW / WW) colour temperature to punchy colours (RGB) and punchy + pastel colours (RGBW). A special flight case for eight Compact Par 7 fixtures is optional for quick and easy transport and storage.

Each projector has different board options, effects and functionalities. We recommend you check the product pages for more information.

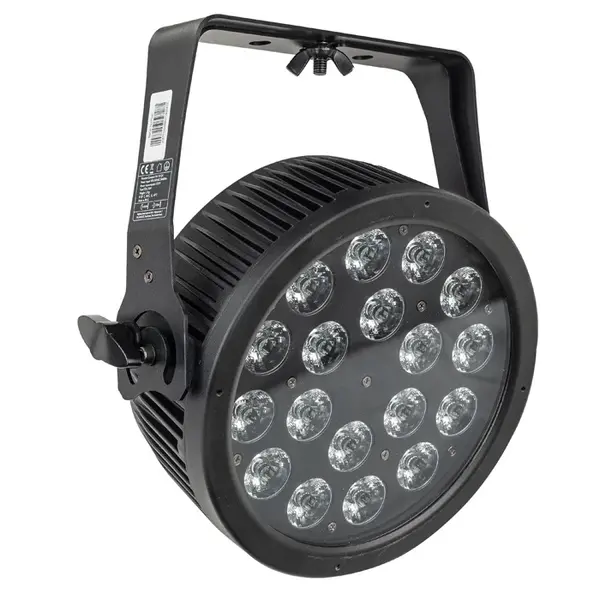

The Showtec Compact Par 18 Q4 is a compact 18x 7-watt RGBW LED Par with double bracket for easy floor positioning, suitable for indoor locations. It has a fixed 15° spread angle and features a 0-100 % dimmer and 0-20 Hz strobe function, ideal for mixing colours for short-range applications. The Compact Par 18 Q4 can be controlled manually, via DMX and master/slave in manual, automatic and sound-controlled mode with several built-in programmes. Its design fits any setting with a choice of black and white finishes. A dedicated filter frame holder, filter frame and power cable are included.

Technical specifications
Light source type: LED
Number of light sources: 18
Light source power: 7 W
LED colour type: RGBW
Refresh rate: 12000 Hz
Lumen total: 4997 lm
Beam angle circular: 15°
Control mode: Auto / DMX / Manual
DMX channels: 4 / 6 / 10
Protocols: DMX
Input voltage: 100-240 V AC 50-60 Hz
Power consumption: 132 W
Power connector in: Power Pro Blue
Power connector out: Power Pro Grey
DMX connector: XLR 3P In/Out / XLR 5P In/Out
Length (mm): 300 mm
Width (mm): 131 mm
Height (mm): 313 mm
Weight: 5.2 kg
IP rating: IP20 (indoor use only)
Housing: Aluminium die-cast
Colour: Black
Cooling: Convection
