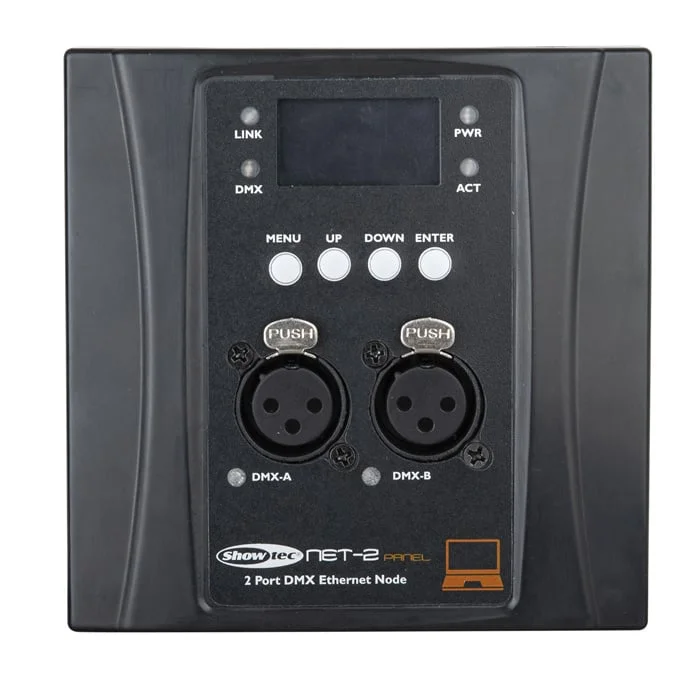

Showtec | NET-2 Panel | Colour: Black housing

The Showtec NET-2 Panel nodes are advanced network routers that convert Art-Net or sACN to DMX512 and back. These wall panels are ideal for creating multiple patch points for DMX inputs or outputs in your professional theatre, school, university, convention hall, club or church. Power can easily be supplied via the NET-5 PoE switch or by using a local small power supply in the wall. Up to 1024 channels can be transported over a single CAT5. All settings can be made via the user-friendly menu on the graphical display and front buttons or via the remote web interface accessible within the network. Default login account: Admin, password: Admin. As a DMX input point, you can use it as a normal input or as a backup input. DMX output options are normal, merging HTP/LTP. The NET-2 panel fits a normal masonry 3.5" flush-mount box or European U50 flush-mount box.

Technical specifications
Input voltage: 12-36 VDC
Power over Ethernet (PoE): Yes
Power consumption: 6 W
Power connector in: Phoenix
DMX connector: XLR 5P In/Out
DMX connector in: XLR 5P
DMX connector out: XLR 5P
Data connector in: RJ45
Length (mm): 113 mm
Width (mm): 113 mm
Height (mm): 33 mm
Weight: 0.275 kg
IP value: IP20 (indoor use only)
Housing: Plastic
Colour: Black
Control mode: Art-Net / DMX / TCP IPv4
DMX channels: 1024
Protocols: Art-Net / DMX / RDM / sACN / TCP-IPv4
Screen: OLED
Universes: 2
