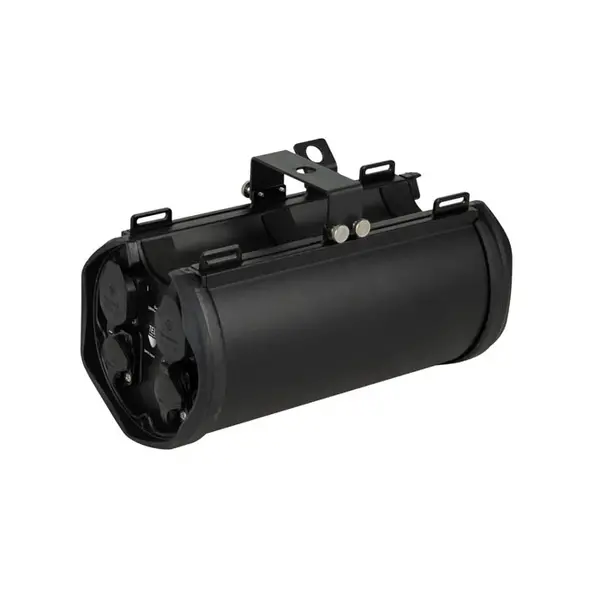

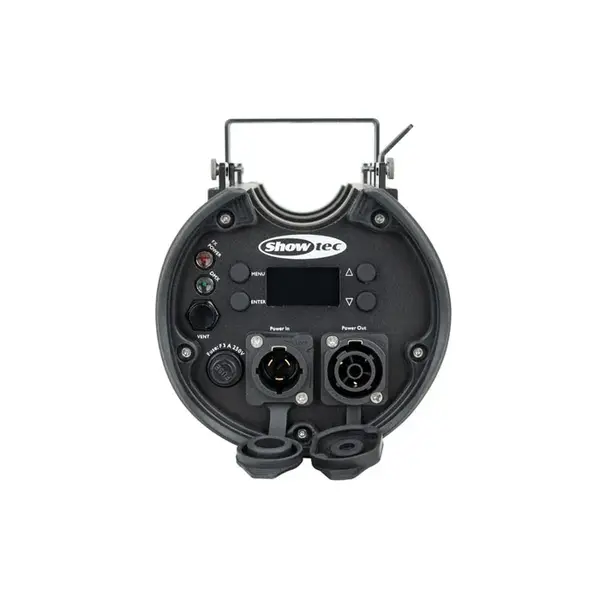

Showtec | TED Pack IP | 2-Channel Dimmer Pack DMX/RDM

The TED Pack IP is a 500W/2-channel dimmer with IP65 rating for temporary outdoor use. It has dimming, switching and FX modes, can handle RDM and is equipped with solid connectors from Seetronic. The outputs are independent of the connected load and it can drive both LEDs and incandescent lamps up to 2 A, split between the two channels. The TED Pack IP uses MOSFETs to dim the output and can do so via either phase cut or phase cut (leading/trailing edge). Special FX mode provides a safety channel that prevents unintended activation, which can be useful when controlling shooters, (confetti) cannons, drops, and so on. The unit can be controlled manually and via DMX and RDM.
Mounting on truss or on tubes is possible in several ways using the bracket or using Velcro on the 4 openings. A rubber protection ring on both sides of the robust housing and the IP65 rating make the TED Pack IP ideal for road productions.

Technical specifications
Control mode: DMX / Manual
Protocols: DMX / RDM
DMX channels: 2 / 3
Input voltage: 220-240 V AC 50 Hz
Output power per channel: 1 A
Output wattage per Channel: 200 W
Power connector in: Power Pro True
Power connector out: Power Pro True
DMX connector in: XLR 5P
DMX connector out: XLR 5P
Length (mm): 245 mm
Width (mm): 125 mm
Height (mm): 150 mm
Weight: 2.43 kg
IP value: IP65
Housing: Aluminium
Colour: Black
