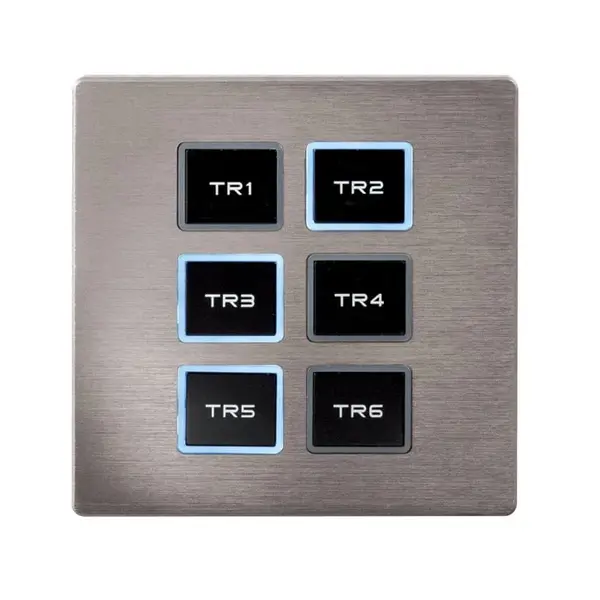

Showtec | Wall Panel Remote for TR-512 Install/Pocket | Front Panel

The Showtec wall panel remote control for TR-512 is an ideal solution to manually trigger a pre-made show or scene. It is a very convenient wall panel to complete your system integration project when using the TR-512 Install DMX recorder/playback. This wall panel remote control is widely used in theme parks, museums and shops.

The two-way communication between the wall panel and the TR-512 Install allows visual feedback of the active sequences and which shows will end. You can easily find the right button even in the dark. This is because it is equipped with key illumination. The Wall Panel Remote is also powered directly by the TR-512 Install module via an RJ45 data cable.

The Wall Panel Remote for TR-512 Install fits into a U40 flush-mount box for easy and visually appealing installation. It is available with a black and silver front panel.

Please note that this wall panel remote control is only suitable for the TR-512 Install/Pocket (50823/50826).

Technical specifications
Input voltage: 12 VDC
Power consumption: 1 W
Power connector in: RJ45
Length (mm): 85 mm
Width (mm): 85 mm
Height (mm): 7 mm
Weight: 0.1 kg
IP rating: IP20 (indoor use only)
Housing: Aluminium
Colour: Black
Control mode: Remote
