SRS Lighting | 6-, 12- or 18-channel control panel | 19-inch 3U | DMX+ 0/+10V console | DMX out: WAGO

Control panel 6-12-18 channels

The 6-12-18-channel control panel is available in three different types with a choice of 6, 12 or 18 channels. It is a small and light DMX control panel equipped with a DMX and 0-10V analogue output. The advantages of these DMX control panels (and also unique features) are the very shallow built-in depth of 25mm, easy operation, low power consumption and WAGO connectors, making this DMX control panel easy to install. Versions:

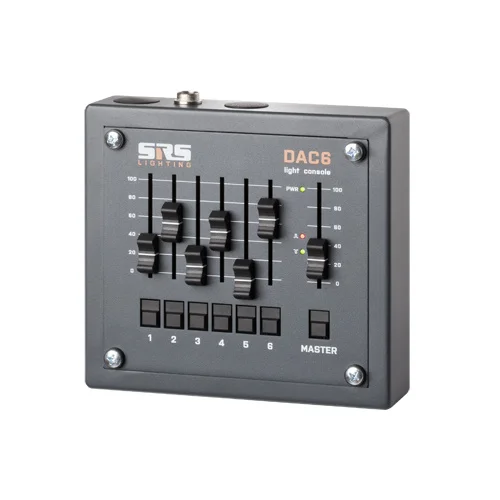

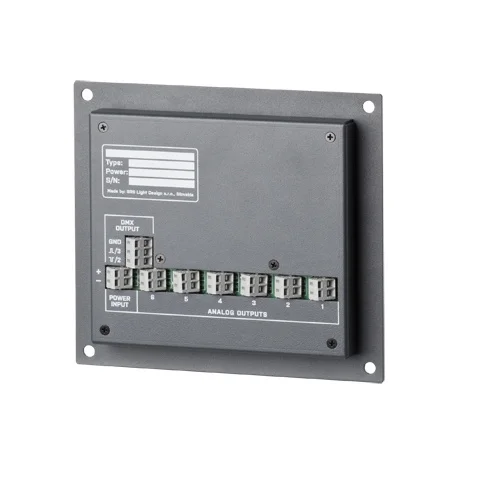

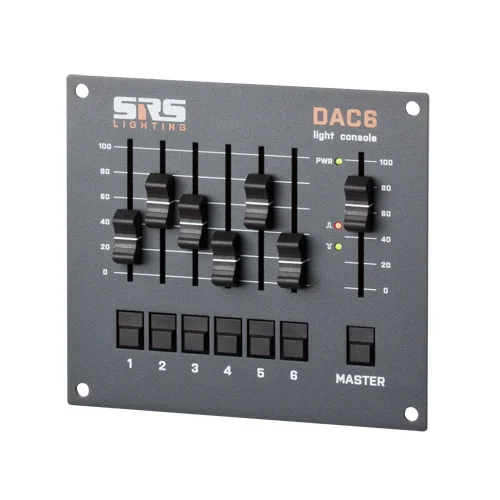

• DAC6W 58 x 175 x 25 mm / 0.8kg

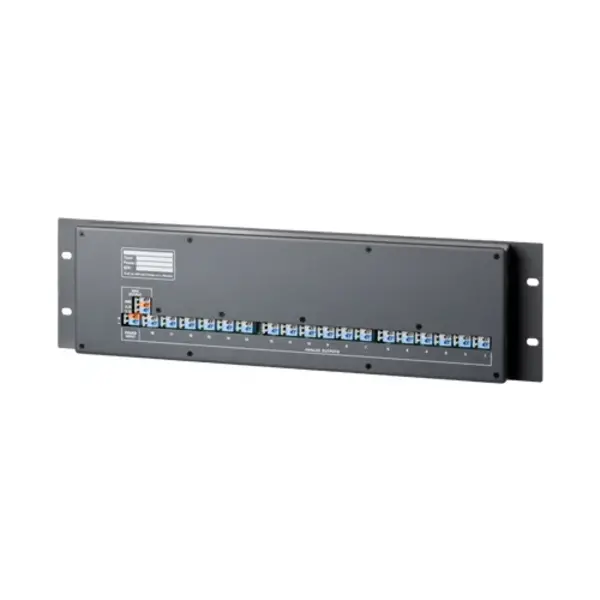

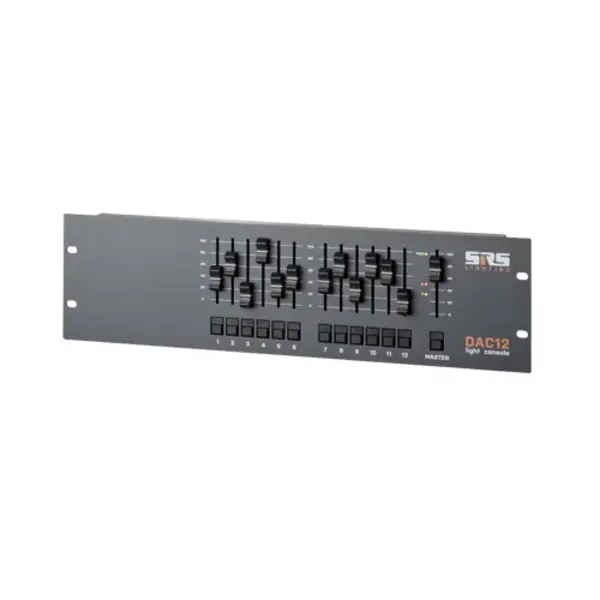

• DAC12 19inch 3HE / 482.6 x 132 x 27.5 mm / 1.5KG

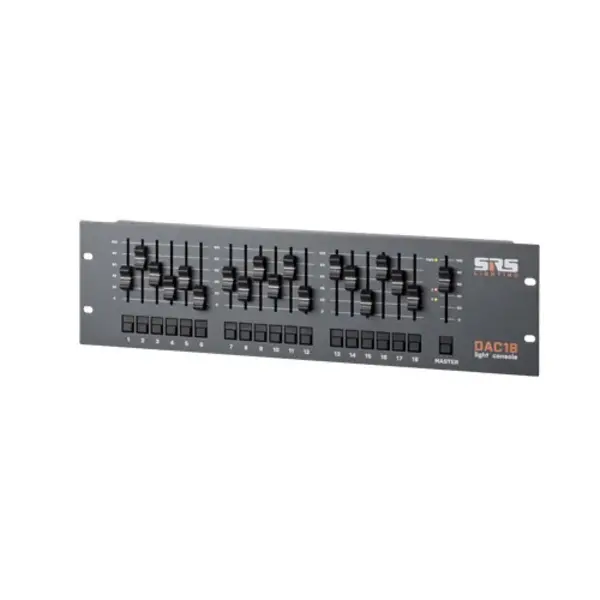

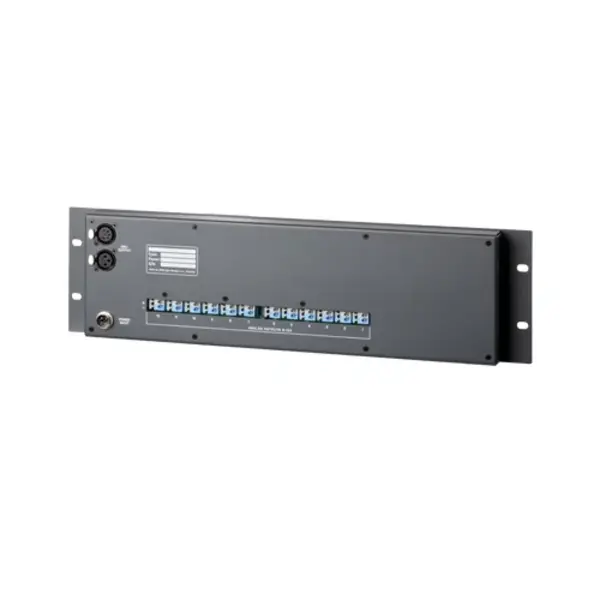

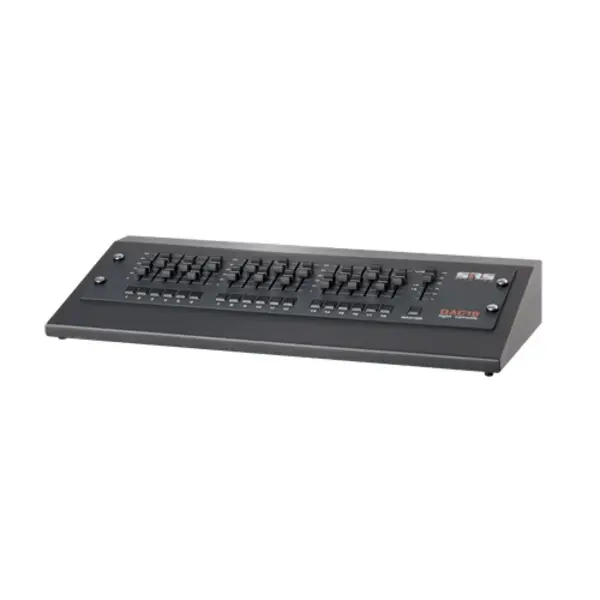

• DAC18 19inch 3HE / 482.6 x 132 x 27.5 mm / 1.5KG

Data:

• channel master Longlife 60mm faders with dust-cover
• channel master flash buttons
• DMX output
• analogue 0-10V output
• 2x LED indication for DMX
• external adapter 12-15VDC
• very low installation depth
• low power consumption
• 5-year warranty

The control panels are often used in combination with the Led dimmer 4-channel. This dimmer is very suitable for dimming retro-fit LED lamps. The LED dimmer 4-channel is suitable for DIN rail mounting.
