SRS Lighting | DDP1213-RCK2 | Installation dimmer 12-channel DDP| 19-inch | Circuit breakers: Single-pole | Power: 13A | Main: RCD | DMX 3+5pin | Excluding Slide

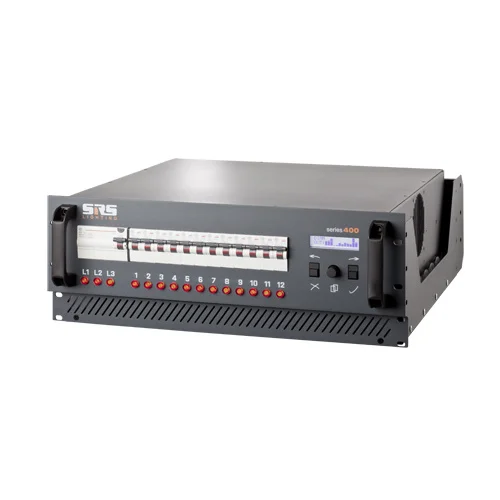

Installation dimmer 12-channel DDP

The Installation dimmer 12-channel DDP is a very compact 19inch dimmer with fast dimmer response, 400uS rise-time, at an affordable price. SRS Light started designing the 12-channel dimmer packs in 1992, which went into production in 1994. The current generation DDP is directly derived from these. The dimmers are distinguished by a smart cooling system and are suitable for continuous use. The most advanced dimmers from 1 to 12 channels all have the same internal qualities. All dimmers therefore have a rise time of 400uS. This results in less vibrating filaments, giving a longer lamp life and lower noise production. All SRS Light dimmers come with at least a 2-year warranty. You can order this dimmer separately with a connection plate of your choice. As standard, SRS Light NDP and DDP dimmers are supplied with a gland plate. It is also possible to order the dimmer with a connector plate. This can be ordered separately. Would you like a dimmer installation (installation or tour version) according to your specifications? That is of course possible! For this, it is useful to let us know your exact requirements. Call us or send an e-mail and we will contact you as soon as possible. Specifications

• Available in a 10A, 13A and 16A version.
• 2 DMX in- and outputs
• 30mA earth fault or main switch on fixed voltage.
• 1Pole or 1P Neutral circuit breakers
• Equipped with both 3 pin and 5 pin DMX connection

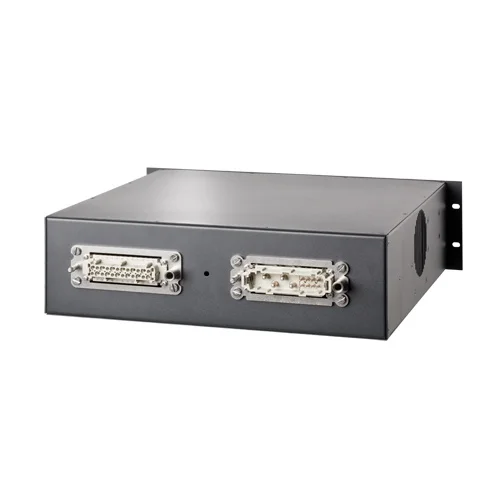

• Available with the following connection: Schuko Socapex Harting
• Weight 28 kg
• Dimensions LxHxD 483x132x460 mm.
• 5 year warranty!
