SRS Lighting | Dimmer 12-channel DDP | 19-inch | Circuit breakers: RCBO | Main: Main switch | DMX 3+5pin | Excluding backplate

SRS Lighting | Dimmer 12-channel DDP | 19-inch | Circuit breakers: RCBO | Main: Main switch | DMX 3+5pin | Excluding backplate

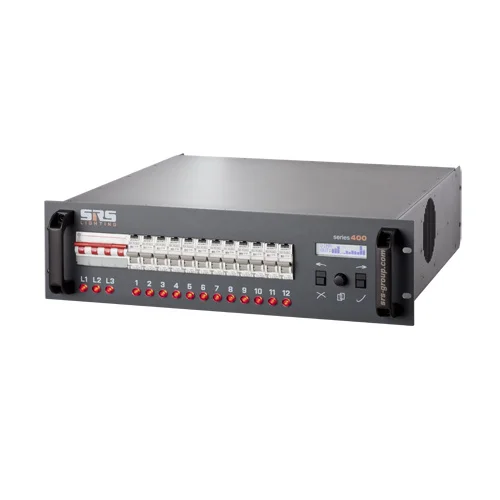

The Dimmer 12-channel DDP with RCBO from SRS Lighting is a compact 19-inch dimmer that impresses with its fast dimming response and a rise-time of just 400uS, all at an affordable price. SRS Lighting's rich history began in 1992 with the development of 12-channel dimmer packs, which went into production in 1994. The current generation of DDP dimmers grew directly out of this experience and expertise.

What sets these dimmers apart is the smart cooling system, which makes them suitable for continuous use. Whether you choose a 1-channel or 12-channel dimmer, they all share the same internal qualities and offer a fast rise-time of 400uS. This results in fewer vibrating filaments, which results in longer lamp life and less lamp noise.

All dimmers from SRS Lighting come with a minimum 2-year warranty. You have the flexibility to order the dimmer separately with a connection plate of your choice. As standard, NDP and DDP dimmers from SRS Lighting are supplied with a gland plate. Moreover, it is possible to upgrade the dimmer with a connector plate, which is available separately.

Customised Dimmer Installations for Your Project

SRS Lighting offers the possibility to customise dimmer installations to your specific needs, whether it is an installation or touring version. To discuss and express your exact requirements, our experts are at your service. Contact us by phone or email, and we will respond quickly.

Technical specifications:

• available in a 10A, 13A and 16A version.
• 2 DMX inputs and outputs
• 30mA earth fault or main switch on fixed voltage.
• 1Pole or 1P Neutral circuit breakers.
• Equipped with both 3 pin and 5 pin DMX connection
• Available with the following connection:
  • Schuko
  • Socapex
  • Harting
• Weight 28 kg
• 19'' rack mounting
• Dimensions LxHxD 483x132x460 mm.

This SRS lighting dimmer 12-channel DDP with RCBO comes with a 5-year warranty!
