SRS Lighting | DSR10-RDM-N | RDM DMX splitter 10-channel | DMX Input: RJ45 | DMX output: RJ45 | 19-inch | Power input: Powercon

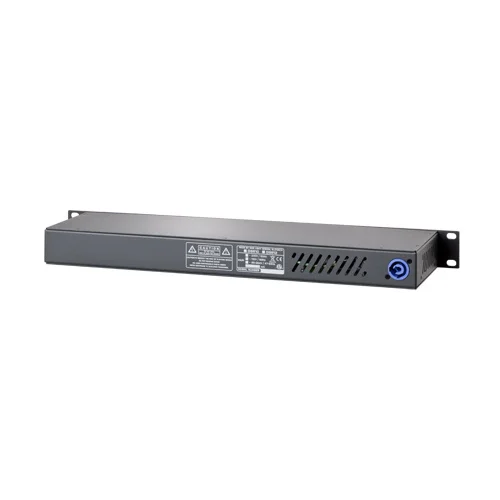

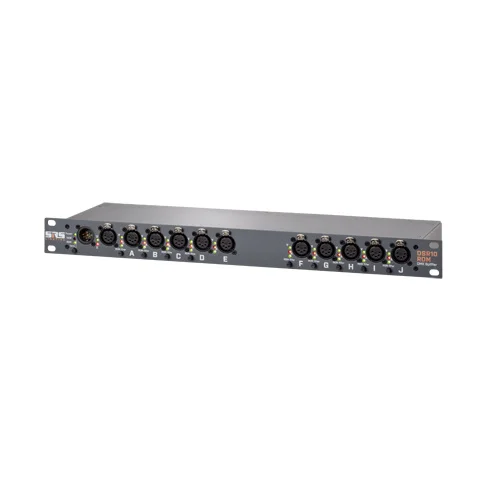

DMX splitter with RDM 10-channel

This SRS Lighting DMX splitter with RDM has 10 DMX outputs and Neutrik powerCON voltage supply. One of the unique features of the DST10-RDM is the switchable RDM filter per channel, allowing devices with and without RDM to coexist smoothly. LED indicator for presence of DMX and RDM. SRS Lighting's DMX splitters are of very high quality.

DMX outputs

All DMX splitters from SRS Lighting can be equipped with DMX 3- and/or 5-pin XLR and/or RJ45. All DMX splitters have a DMX input and DMX-thru. The DMX outputs are optically/electrically isolated lines and are marked with numbers. Each DMX output has a separate power supply and line driver, and a clear indication of the signal by means of two LEDs per output. The DMX splitters have a switched-mode power supply, allowing the mains voltage to vary between 85V and 265V. The SRS splitter are available with 3- and 5-pole XLR DMX connection. The specifications:

• 10-channel DMX splitter
• LED indicator for presence of DMX and RDM.
• optically isolated outputs with 1000V isolation
• 2x LED indication for DMX line status per output
• fixing with two stripes or wall mounting
• safety cable attachment
• mains voltage, powercon 85-265V, 50/60Hz
• lifetime warranty!

SRS Lighting's DMX splitter with RDM comes with a lifetime warranty!
