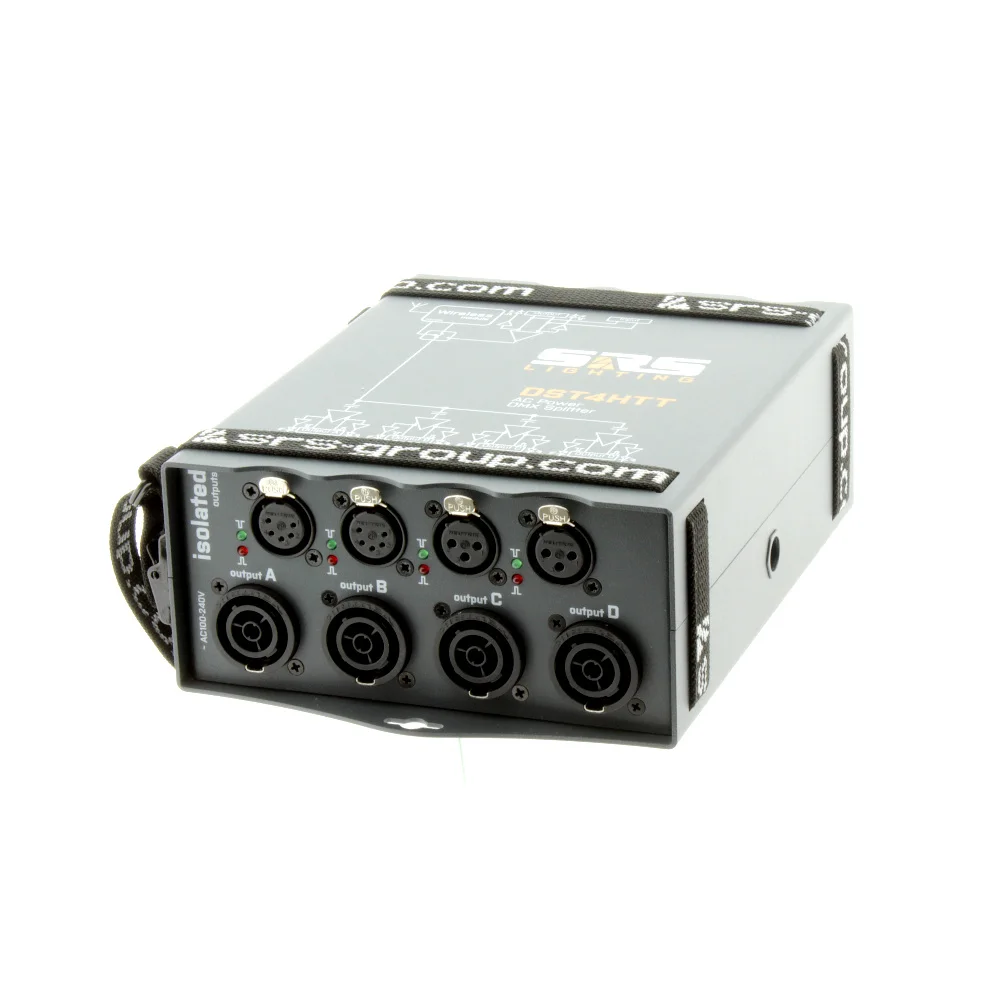

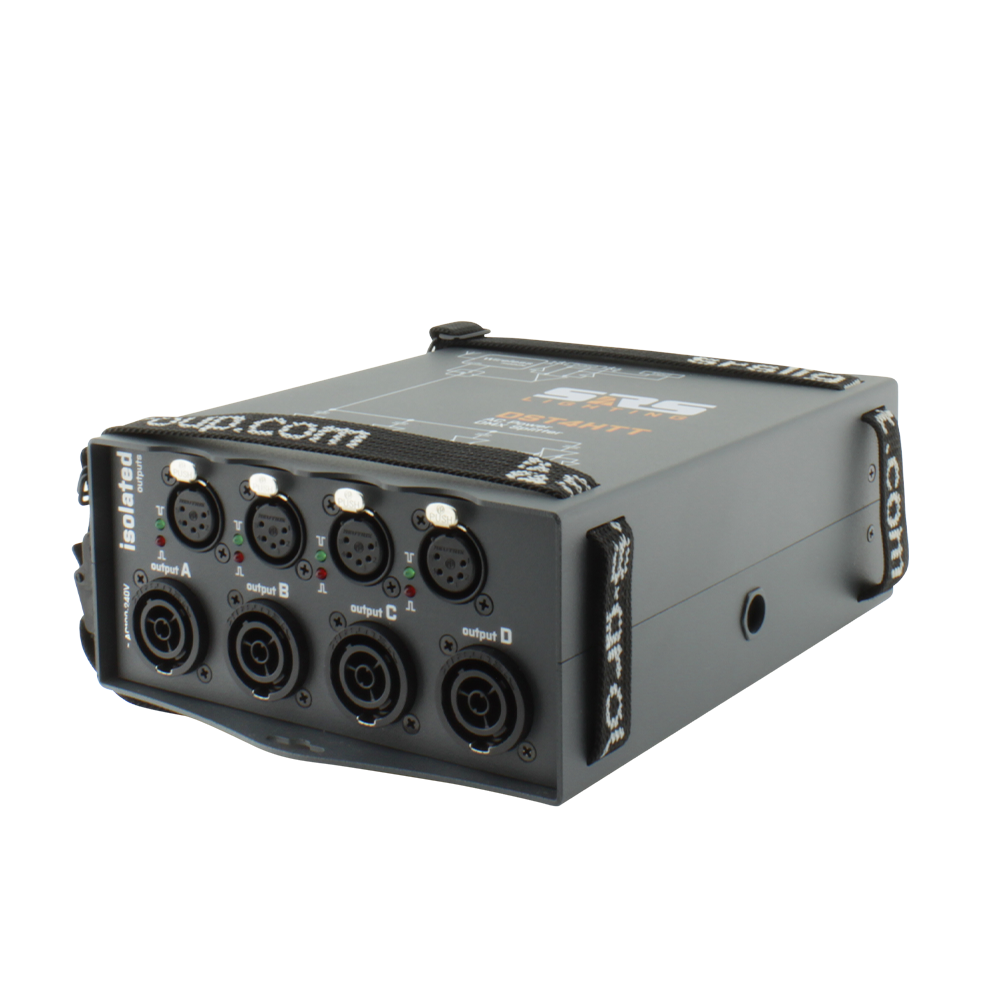

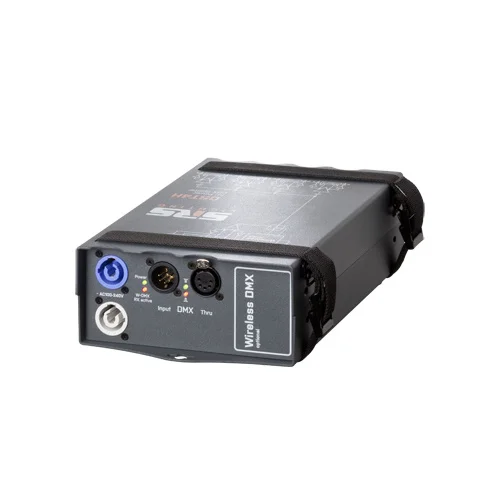

SRS Lighting | DST4H | DMX splitter 4-channel and 4-channel power divider
This DMX splitter 4-channel with 4-channel power divider has 4x powerCON outputs in addition to 4 DMX outputs. Read more
SRS Lighting | DST4H | DMX splitter 4-channel and 4-channel powercon distributor
This SRS Light DMX splitter 4-channel with power divider has 4x powercon outputs in addition to 4 DMX outputs. On these, you can easily supply your LED luminaire with power and DMX. SRS Light's DMX splitters are of very high quality. This is why they dare to give a lifetime warranty on these products! All DMX splitters from SRS Light can be equipped with DMX 3- and/or 5-pin XLR and/or RJ45.
3-pin and 5-pin XLR
All DMX splitters have a DMX input and DMX-thru. The DMX outputs are optically/electrically isolated lines and are marked with numbers. Each DMX output has a separate power supply and line driver, and a clear indication of the signal by means of two LEDs per output. The DMX splitters have a switched-mode power supply, allowing the mains voltage to vary between 85V and 265V. The SRS splitters are available with 3- and 5-pole XLR DMX connection or a combination of these (custom made). If you select the custom option, you can create your own configuration.
Technical specifications:
- 4-channel DMX splitter
- 4-channel Powercon power splitter
- optically isolated outputs with 1000V isolation
- 2x LED indication for DMX line status per output
- mounting with two stripes or wall mounting
- safety cable attachment
- mains voltage, Powercon 85-265V, 50/60Hz
- lifetime warranty!
This SRS DMX splitter 4-channel has a lifetime warranty!
