SRS Lighting | Led Dimmer 1, 3 or 6-channel | DMX RGB | DC12 - DC40V | Max 12A | DMX Input: wago| DMX output: wago | Power input: wago | Led Dimmer 3-channel | DMX RGB | DC12 - DC40V | Max 12A | DMX Input: wago | DMX output: wago | Power input: wago

SRS Lighting | LED Dimmer 1-, 3- or 6-channel | DMX RGB | DC12 - DC40V | Max 12A | DMX Input: wago| DMX output: wago | Power input: wago

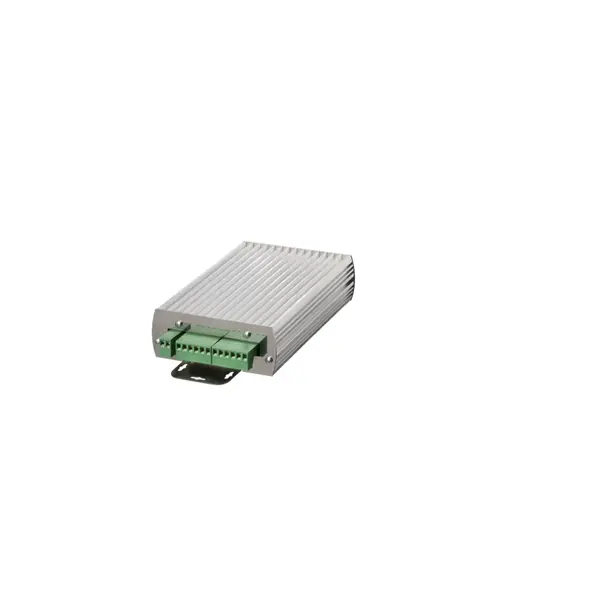

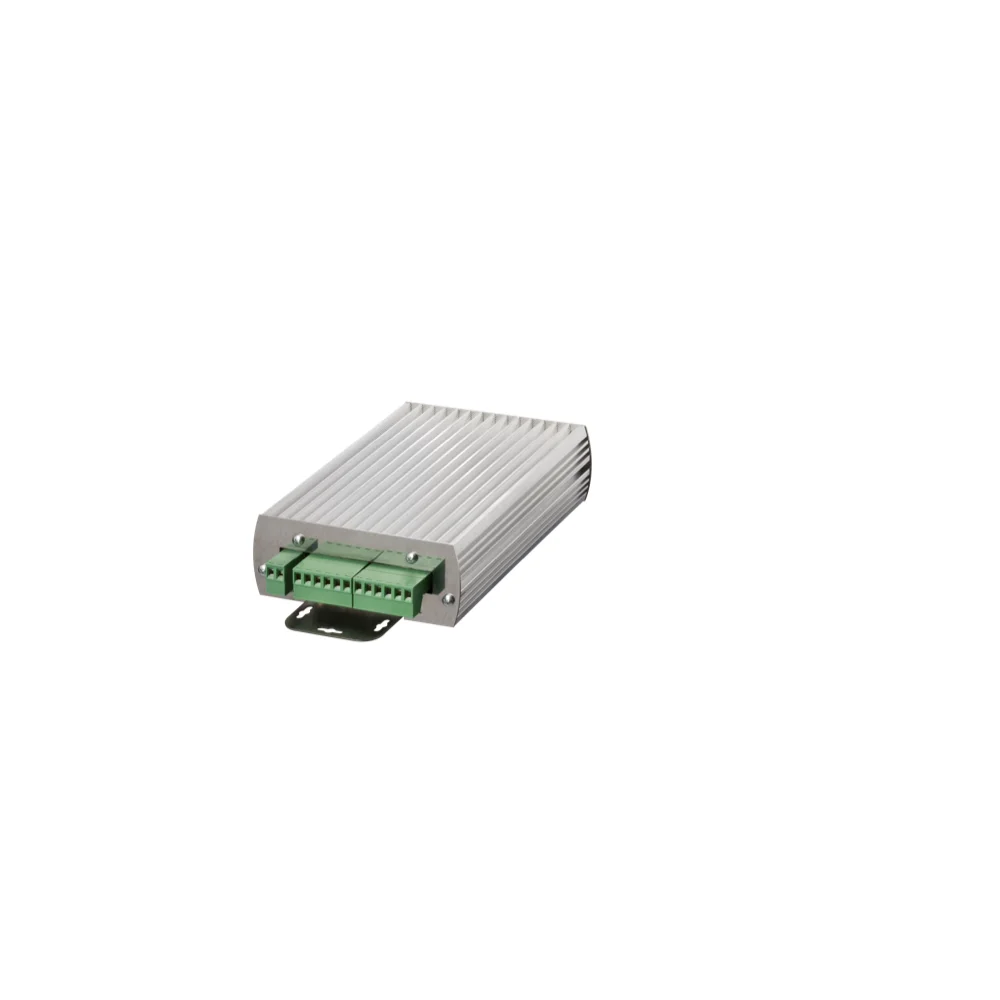

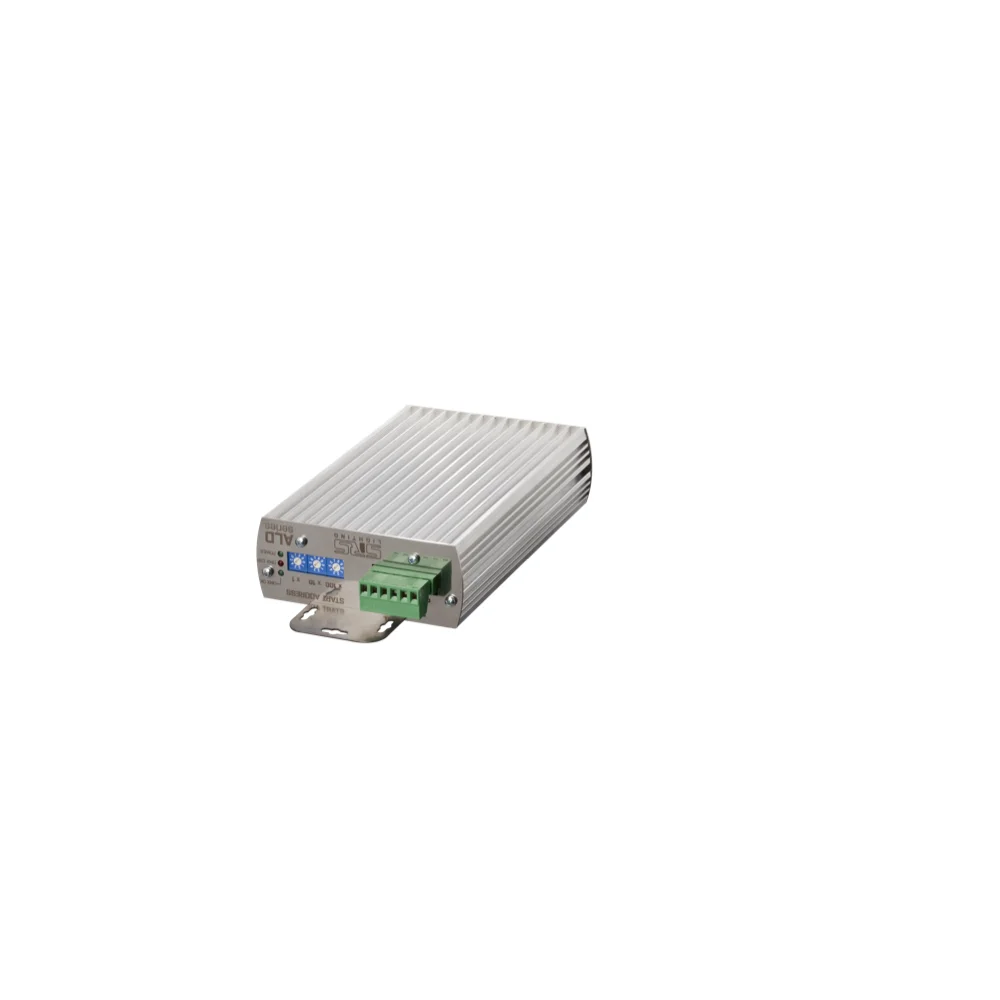

The SRS Lighting ALD is a versatile LED driver suitable for LED tubes. This dimmer offers high-quality DMX dimmer control for LED strips and tubes. Whether for standalone applications or advanced DMX control, the ALD offers flexibility and precision. With models for 1, 3 or 6 channels and support for 12-24V RGB lighting, the ALD offers the perfect solution for all your LED dimming needs.

With the latest firmware, you can choose between 16-bit/8-bit or 8-bit modes and set the frequency via DMX. This dimmer delivers smooth, accurate dimming with 16-bit resolution and a gradual dimming curve. Moreover, installation is easy thanks to screw terminals for both power and DMX connections.

Technical specifications:

• DMX dimming unit for LED stripes / tubes
• 12.2018 new firmware : 16bit/8bit or 8bit with flexible frequency setup via DMX
• Power supply: DC12 - DC40V
• DMX IN / THRU screw terminals
• LED indication of DMX line and the presence of power
• Rotary DMX address switches
• Dimensions: 152 x 42 x 108mm (WxHxD)
• Distance between the mounting points: 200mm
• Weight: 600g
