SRS Lighting | NDPG6016-5-WM | Wall dimmer 6-channel NDP | Circuit breakers: RCBO | Power: 16A | Main: Main switch | DMX 5pin | Excluding backplate

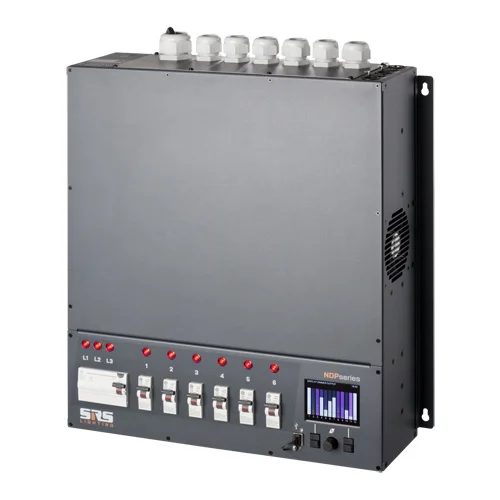

Wall dimmer 6-channel NDP with network and RCBO
The Wall Dimmer 6-channel NDP with network and RCBO is a very compact wall dimmer with fast dimmer response, 400uS rise-time, at an affordable price.

SRS Light started designing the 12-channel dimmer packs in 1992, which went into production in 1994. The current generation DDP is directly derived from these. The dimmers are distinguished by a smart cooling system and are suitable for continuous use. The most advanced dimmers from 1 to 12 channels all have the same internal qualities. All dimmers therefore have a rise time of 400uS. This results in less vibrating filaments, yielding a longer lamp life and lower noise production. All SRS Light dimmers come with at least a 2-year warranty.

You can order this dimmer separately with a connection plate of your choice. As standard, SRS Light NDP and DDP dimmers are supplied with a gland plate.

Would you like a dimmer installation (installation or tour version) to your specification? That is of course possible! For this, it is useful to let us know your exact requirements.

Specifications

available in 10A, 13A or 16A version
30mA earth leakage or main switch on fixed voltage
1P or 1P Neutral circuit breakers
Both with 3 pin DMX and 5 pin
Both DMX and analogue can be used simultaneously.
Available with the following connection:
Schuko
Socapex
Harting
Weight 28 kg
Dimensions HxWxD 490x481x132 mm
5-year warranty!
