SRS Lighting VLAN Toolbox 24-4: 24-port Managed Cisco Switch with Display Interface and PoE+

The SRS Lighting VLAN-toolbox 24-4 is an advanced 24-port managed Cisco switch designed specifically for the professional AV industry. With features such as VLAN assignment, trunking, link aggregation, and an intuitive user interface on a display, this switch allows users without in-depth network knowledge to easily manage complex network configurations. This 19-inch rackmount switch with a 2U height supports 24 etherCON ports and 4 fibre-optic ports with a data rate of up to 40 Gb/s. In addition, the switch is equipped with Power over Ethernet (PoE+), with 195W of power, and a cable tester for quick diagnostics.

Key specifications of the SRS-Lighting Vlan-Toolbox

• Dimensions: 483 x 88 x 453 mm (WxHxD)
• Weight: 11,8 kg
• Connections: 24 RJ45 ports (20 at the front, 4 at the rear)
• PoE: 195W power
• Fibre optic ports: 4 ports (10 Gb/s per port, maximum 40 Gb/s in LAG mode)
• RJ45 ports speed: 1 Gb/s
• Fibre optic ports speed: 10 Gb/s per port, 40 Gb/s in LAG-mode

Starting up the VLAN toolbox

When you power up the VLAN Toolbox 24-4, the device starts up automatically and is ready to use in about four minutes. During start-up, you will see a progress bar on the display, so you know exactly how far along the process is. Once booted up, you can immediately start configuring the switch without the need for external devices such as a laptop or tablet. The intuitive interface makes setup easy, even if you don't have extensive IT experience.

Simple operation.

The VLAN toolbox is designed for ease of use, with two controls that make navigating menus and settings easy:

• Data button: Turn to scroll through the menu and press to confirm selections. On some screens, you can use the button to move the cursor.
• Escape button: Use this button to go one step back in the menu or to cancel changes and restore the original settings.

Powerful VLAN configuration

One of the key features of the SRS VLAN toolbox is easy setup and management of VLANs (Virtual Local Area Networks). VLANs help you separate data flows and optimise the performance of your network. The toolbox comes with nine preconfigured VLAN presets, each tailored to specific network applications, such as:

• VLAN 10: Control network
• VLAN 20: Audio-over-IP
• VLAN 30: Primary Dante-audio
• VLAN 40: Secondary Dante-audio
• VLAN 50: Lighting control (Art-Net)
• VLAN 60: Streaming Architectural Control Network (sACN)
• VLAN 70: Light-over-IP
• VLAN 80: Video-over-IP
• VLAN 90: Intercom

Assigning VLANs to ports

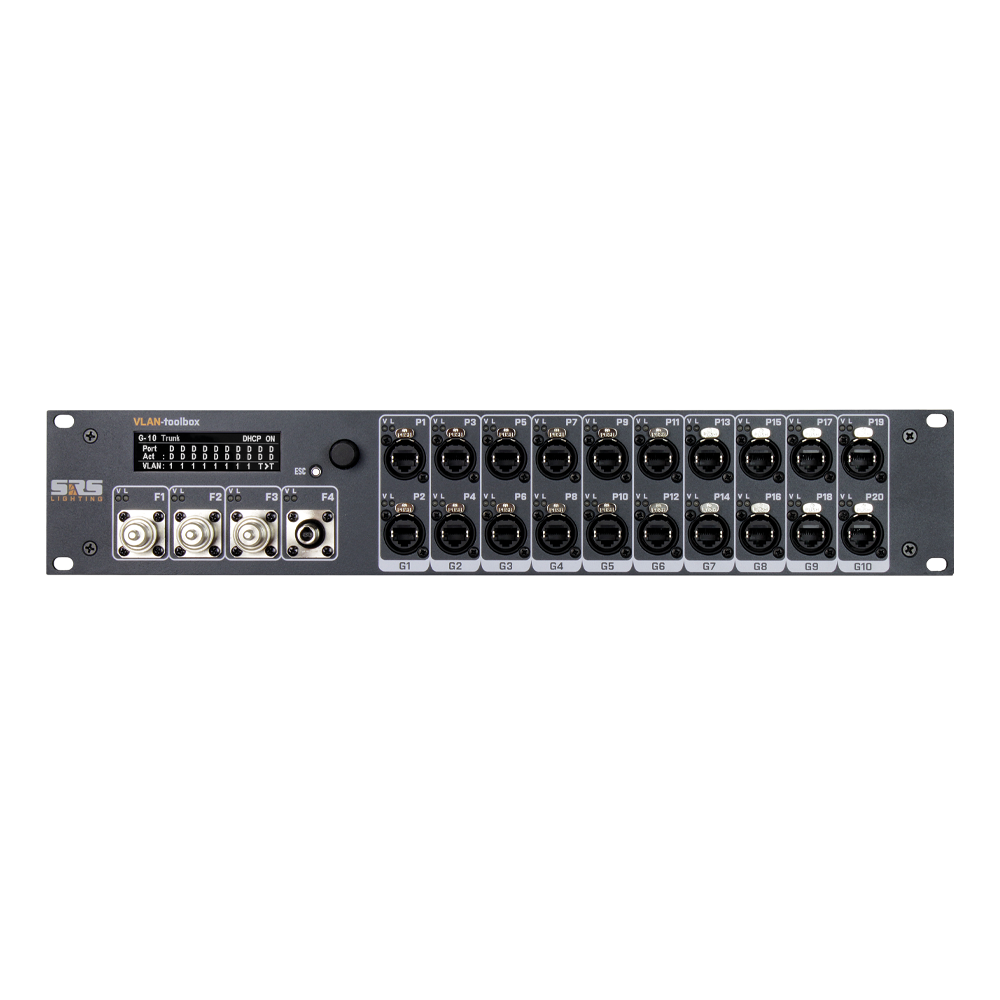

You can easily assign VLANs to the Ethernet ports on the front of the switch, which are divided into groups of two ports. Using the display, simply select the desired VLAN and assign it to the ports. LED indicators show whether the ports are active: green for active connections and orange for PoE-active ports.

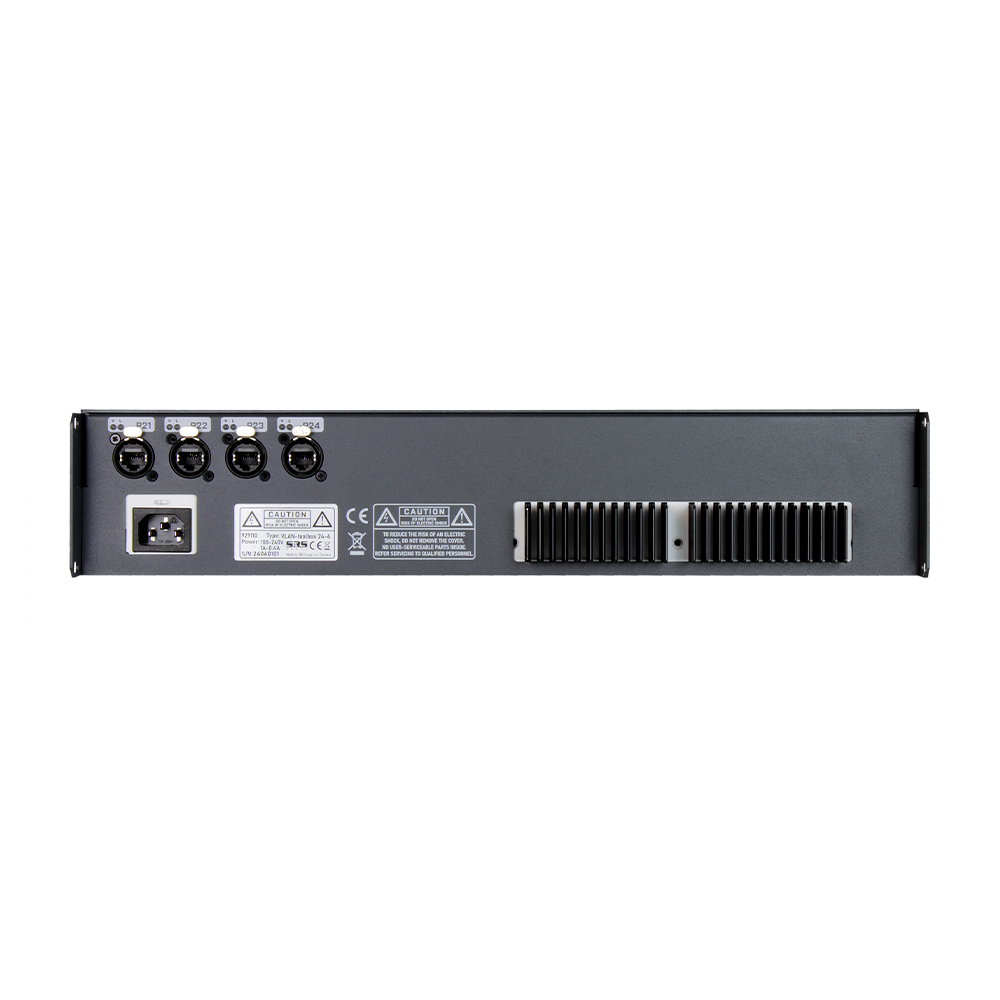

The VLAN toolbox also allows you to configure the rear Ethernet ports and fibre-optic ports in the same way, which is especially useful for large-scale networks and the use of trunking.

Advanced networking features

• Trunking: Simplify your network cabling by transporting multiple VLANs over a single trunk port. This is especially useful when connecting switches over long distances, such as when using fibre-optic ports.
• Link Aggregation (LAG): CCombine multiple ports to increase bandwidth or create redundancy. If one cable fails, data flow through other cables remains active.

DHCP server and IP management

The built-in DHCP server allows you to automatically assign IP addresses to devices in your network, without having to manually set static IPs. You can easily define a separate IP range for each VLAN, preventing IP pools from overlapping and keeping your network running smoothly.

Real-time monitoring and troubleshooting

The VLAN toolbox provides detailed port information via the display, such as connection status, speed, PoE consumption and VLAN assignments. In addition, it features a built-in cable tester, allowing you to quickly identify cable problems. Should a problem arise, such as an IP conflict or a VLAN mismatch, you will be automatically notified on the display, allowing you to take immediate action.

Reliable performance and easy reset options

Whether you are setting up a completely new network or want to restore existing settings, the VLAN toolbox provides convenient reset options. You can quickly revert to previously saved settings or perform a full factory reset if needed. Plus, you can easily test the LED indicators on the front panel for a visual check of your network status.

With the SRS Lighting VLAN-toolbox 24-4, you get a powerful and versatile network management tool. Its user-friendly operation and extensive configuration options make it an ideal solution for AV networks that need optimum performance, without the need for in-depth technical knowledge. Whether you need to transport audio, video or other AV signals, the VLAN toolbox ensures an efficient and reliable network that gives you full control.

To learn even more about the SRS Lighting VLAN-toolbox 24-4 check out the tutorial.
