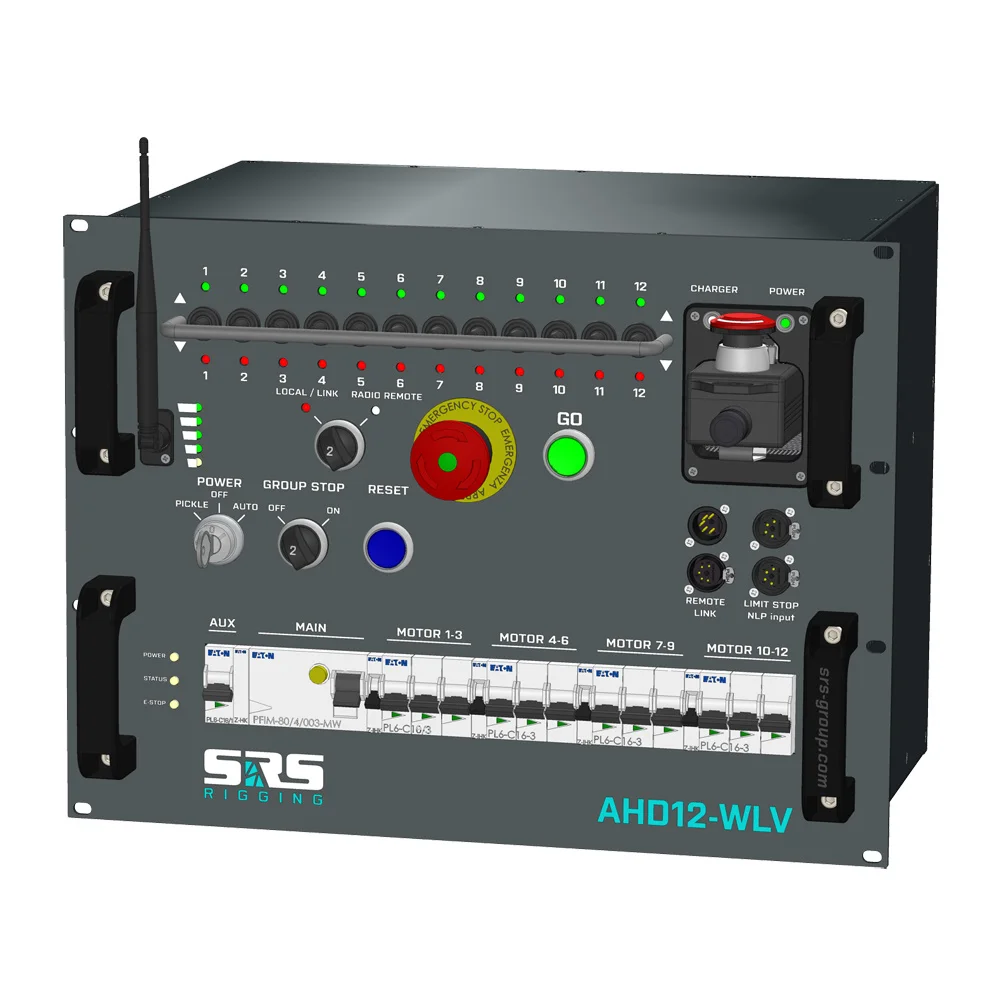

SRS Rigging | AHD12-WLV | AHD Wireless hoist control 12-channel | Type of control: Low Voltage | Input: 1x CEE32A-5p
The Hoist Controller 12-channel AHD - WLV - Wireless remote is a digital hoist controller with built-in wireless remote. Read more
Hoist control 12-channel AHD - WLV - Wireless remote
This hoist controller has a built-in wireless remote control.
The AHD - WLV 12-channel Advanced Digital Hoist Control is designed to control up to 12 motor hoists separately or simultaneously from each other. Optionally, the hoist control can be operated with a CMC-DIGI-AHD digital cable remote control.
The device is equipped with a unique Automatic Phase Align (APA) module, which guarantees that the motors move in the same direction on any alignment of the input phases. If a phase is disconnected, the hoist control stops to ensure a safe situation.
One of the features of AHD-DV is the AVM module (Automatic Voltage Metering). This module monitors mains voltage at AC 400V + -20% in star configuration and protects the hoists in case of mains voltage problems.
The hoist controller will not release control if:
- A phase is missing
- There is undervoltage on the installation
- There is overvoltage on the installation
All electrical components have their own individual CE marking and comply with European directives.
The hoist control sits in a robust steel 19" rack and is powder-coated. The enclosure also has a CE mark and corresponding declaration of conformity.
The AHD-WLV has an additional key switch for the group stop function. When active, switching off the circuit breaker of one hoist will cause an emergency stop on all connected hoists.
Features:
- APA - Automatic Phase Alignment
- AVM - Automatic voltage measurement
- GCT - Group channel control via CMG remote
- RRST - Remote Reset function
Specifications hoist control 12-channel AHD - WLV - Wireless remote:
- Can control up to 384 hoists via AHD link
- GFI/RCD 30mA protected outputs
- UP/DOWN selector switches
- Automatic voltage measurement
- Automatic phase alignment
- Digital remote with all functions
- Emergency stop circuit according to: IEC60204, SIL3
- Suitable for hoist types: BGV D8, BGV D8+

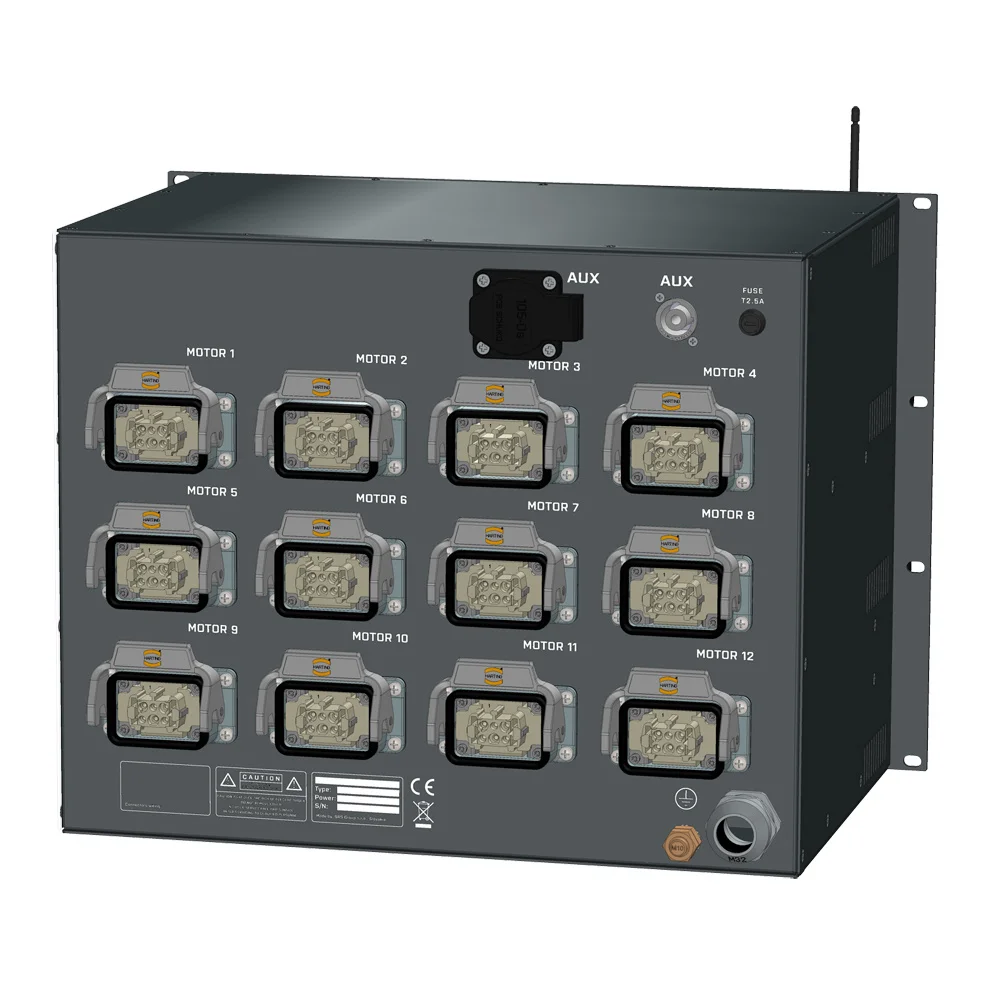

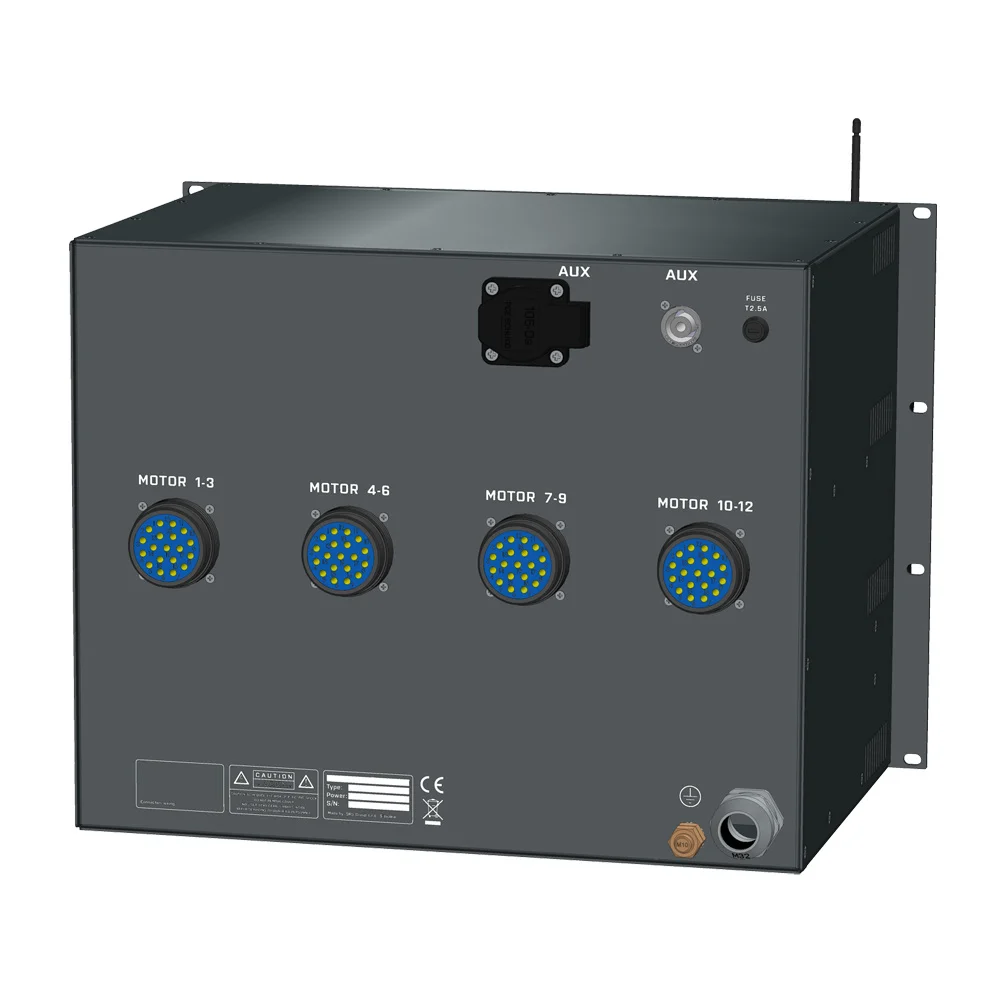

Available in the variants:
- Harting/24p
- Hearting/6p
- Socapex/19p
For use with:
- Chainmaster/Movecat/Liftket/Tourrig
- CM lodestar
- LITEC/EXE
- Trabes
- Prolyft
- Verlinde/Stagemaker
- Hitachi
Type of control | LV |
Number of channels | 12-channel |
Power supply | 400 VAC |
Power connector in | CEE5P 63A |
Power connector uit | |
Rated current | |
Length | |
Height | |
Width | |
Weight |
